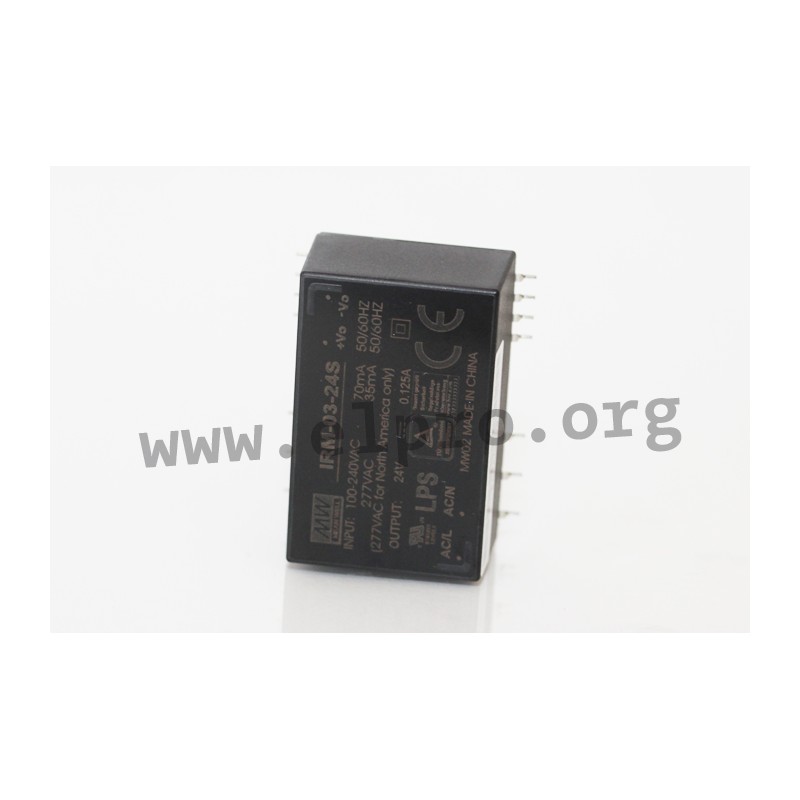

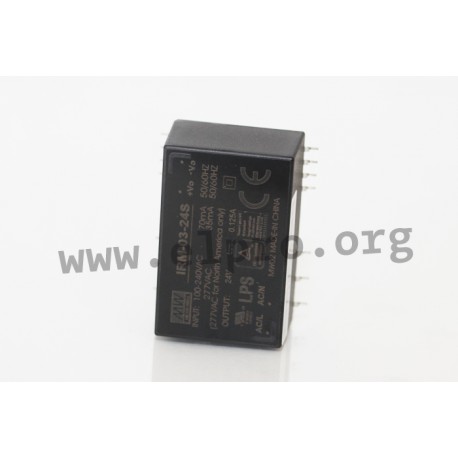

IRM-03-24S

Mean Well power supply series IRM-03

Switching power supplies in an enclosed housing (PCB) with 3W, a universal input, a low no-load power and insulation class II. These devices have a fanless design and are protected against overload, overtemperature as well as short circuit. They are suitable for direct PCB mounting (SMD) and comply with UL/EN62368-1, EN60335-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: IRM-03-3.3S, IRM-03-5S, IRM-03-9S, IRM-03-12S, IRM-03-15S and IRM-03-24S.

  • single output
  • output: 3W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • maximal input inrush current: 20A
  • no-load power: 0,075W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +85°C
  • dimensions: 37x24x16mm
  • weight: 20g
IRM-03-24S

IRM-03-24S

107564 IRM-03-24S IRM-03-24S 4711287423678 Mean Well power supply series IRM-03. Switching power supplies in an enclosed housing (PCB) with 3W, a universal input, a low no-load power and insulation class II. These devices have a fanless design and are protected against overload, overtemperature as well as short circuit. They are suitable for direct PCB mounting (SMD) and comply with UL/EN62368-1, EN60335-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: IRM-03-3.3S, IRM-03-5S, IRM-03-9S, IRM-03-12S, IRM-03-15S and IRM-03-24S. single output output: 3W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC maximal input inrush current: 20A no-load power: 0,075W withstand voltage: 3000V AC operating temperature: -30 to +85°C dimensions: 37x24x16mm weight: 20g

Specifications

manufacturer
Manufacturer's name IRM-03-24S
GTIN 4711287423678
Output voltage [V] 24
Efficiency [%] 80
Output current range [A] 0...0,125
Output voltage tolerance: [%] 2,5
Output power [W] 3
Ripple [mVp-p] 240
Data Sheet

Unit price

5,29 €

Volume discounts

Quantity Unit price
50 + 4,79 €

Stock: 191
Further delivery:
CW 05/2026
