IRM-05-5

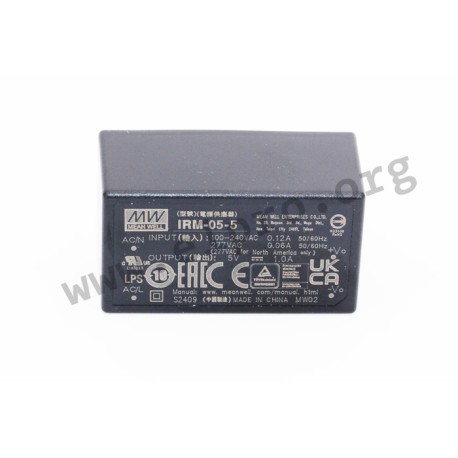

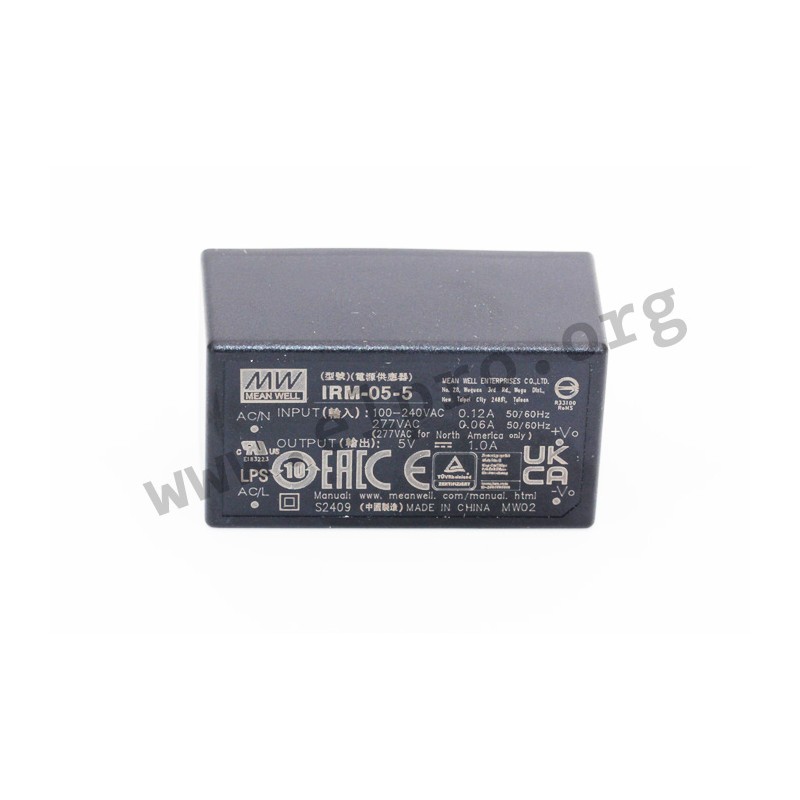

Mean Well power supply series IRM-05

Switching power supplies in an enclosed housing (PCB) with 5W, a universal input, insulation class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, short circuit as well as overtemperature. They have a fanless design and comply with EN55032 class B as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-05-3.3, IRM-05-5, IRM-05-12, IRM-05-15 and IRM-05-24.

  • single output
  • output: 5W
  • input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC
  • maximal input inrush current: 40A
  • no-load power: <0,1W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • dimensions: 45,7x25,4x21,5mm
  • weight: 33g

IRM-05-5

41556 IRM-05-5 IRM-05-5 4711287423692 Mean Well power supply series IRM-05. Switching power supplies in an enclosed housing (PCB) with 5W, a universal input, insulation class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, short circuit as well as overtemperature. They have a fanless design and comply with EN55032 class B as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-05-3.3, IRM-05-5, IRM-05-12, IRM-05-15 and IRM-05-24. single output output: 5W input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC maximal input inrush current: 40A no-load power: &lt;0,1W withstand voltage: 3000V AC operating temperature: -30 to +70°C dimensions: 45,7x25,4x21,5mm weight: 33g

Specifications

manufacturer
Manufacturer's name IRM-05-5
GTIN 4711287423692
Output voltage [V] 5
Phase 2 phase
Efficiency [%] 71
Output current range [A] 0...1
Output voltage tolerance: [%] 2,5
Output power [W] 5
Ripple [mVp-p] 200
Data Sheet

Unit price

5,19 €

Volume discounts

Quantity Unit price
50 + 4,69 €

Stock: 3718
