IRM-90-24ST

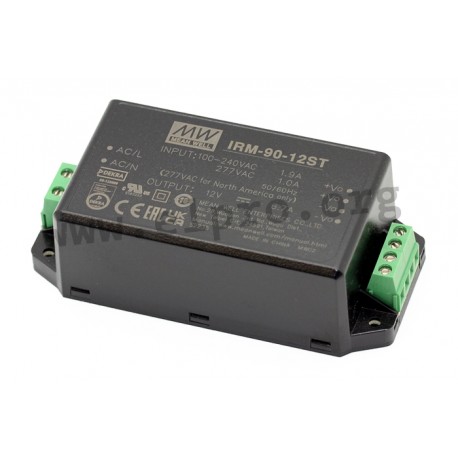

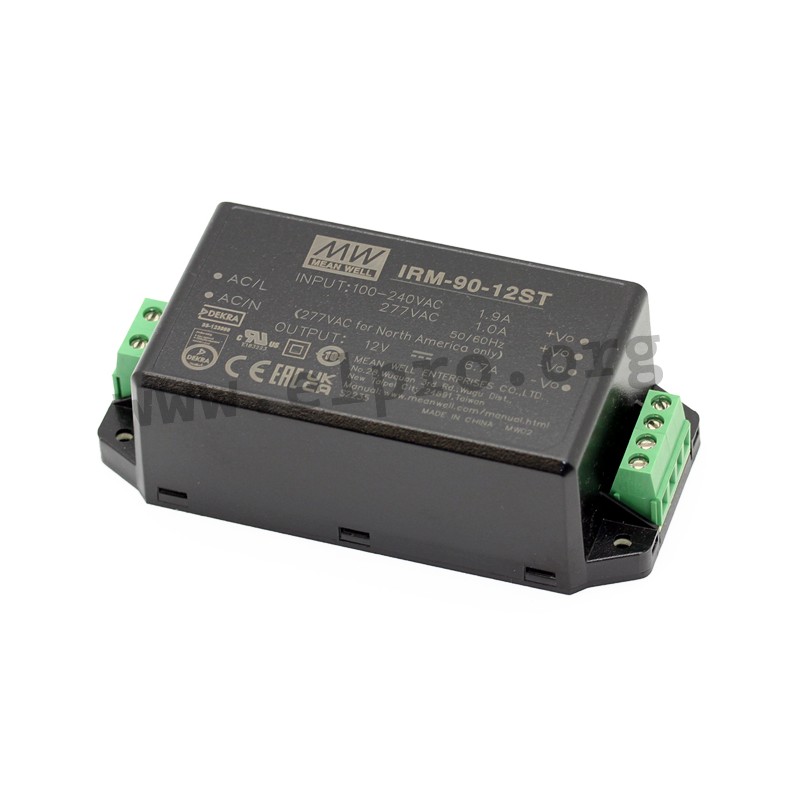

Mean Well AC/DC converter series IRM-90

Converter modules in an enclosed housing with 90W, a universal input and insulation class II. These devices are rated for a peak power of 100W over 10 seconds and are protected against short circuit, overload as well as overvoltage. They are suitable for either PCB mounting (IRM-90-_) or mounting by screw terminals (IRM-90-_ST) and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: IRM-90-12, IRM-90-15, IRM-90-24, IRM-90-48, IRM-90-12ST, IRM-90-15ST, IRM-90-24ST and IRM-90-48ST.

  • single output
  • output: 80,4 to 90,2W
  • input voltage: 80 to 305V AC (47 to 63Hz), 113 to 431V DC
  • maximal input inrush current: 65A
  • maximal no-load power consumption: <0,21W
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +80°C
  • dimensions IRM-90-_: 87x52x29,5mm
  • dimensions IRM-90-_ST: 109x52x33,5mm
  • weight IRM-90-_: 197g
  • weight IRM-90-_ST: 219g

IRM-90-24ST

135933 IRM-90-24ST IRM-90-24ST 4711287424255 Mean Well AC/DC converter series IRM-90. Converter modules in an enclosed housing with 90W, a universal input and insulation class II. These devices are rated for a peak power of 100W over 10 seconds and are protected against short circuit, overload as well as overvoltage. They are suitable for either PCB mounting (IRM-90-_) or mounting by screw terminals (IRM-90-_ST) and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: IRM-90-12, IRM-90-15, IRM-90-24, IRM-90-48, IRM-90-12ST, IRM-90-15ST, IRM-90-24ST and IRM-90-48ST. single output output: 80,4 to 90,2W input voltage: 80 to 305V AC (47 to 63Hz), 113 to 431V DC maximal input inrush current: 65A maximal no-load power consumption: &lt;0,21W withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +80°C dimensions IRM-90-_: 87x52x29,5mm dimensions IRM-90-_ST: 109x52x33,5mm weight IRM-90-_: 197g weight IRM-90-_ST: 219g

Specifications

manufacturer
Manufacturer's name IRM-90-24ST
GTIN 4711287424255
Output voltage [V] 24
Efficiency [%] 93
Output current [A] 3,75
Output voltage tolerance: [%] 2
Output power [W] 90
Ripple [mVp-p] 200
Data Sheet

Unit price

20,59 €

Volume discounts

Quantity Unit price
50 + 19,19 €

Stock: 107
Next incoming goods:
CW 16/2024
100 units


Further delivery:
CW 29/2024
