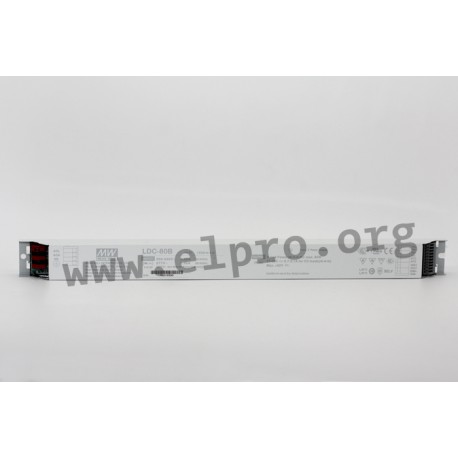

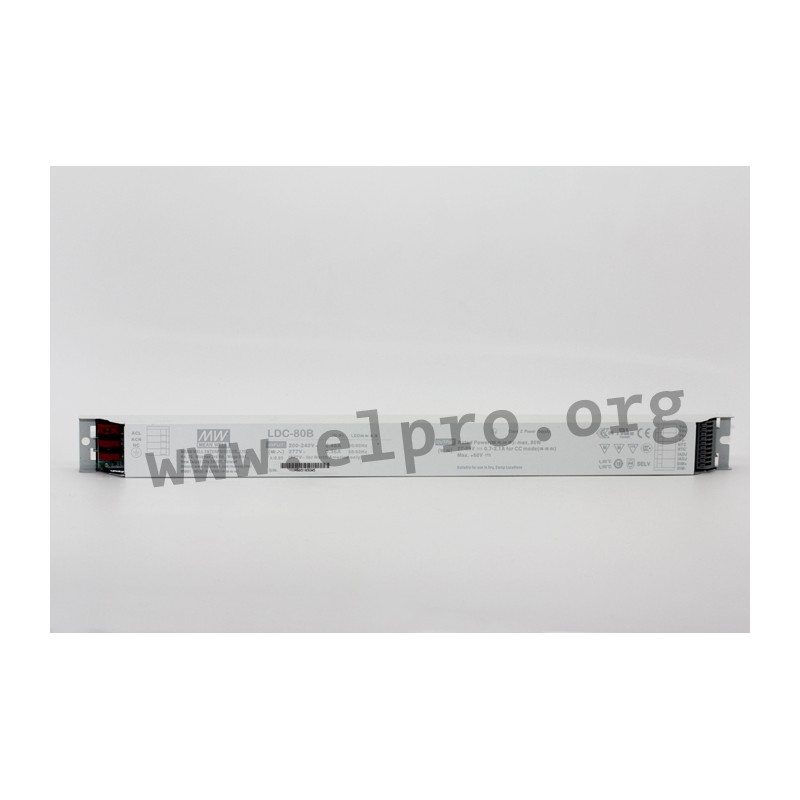

LDC-80B

Mean Well LED driver series LDC-80

LED drivers in an aluminium housing with a universal input, a constant power and 80W. These flickerfree SELV compliant devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: LDC-80 (not dimmable), LDC-80B (3 in 1 dimming function, 0 to 10V DC, PWM, potentiometer) and LDC-80DA (DALI, push dimming).

  • single output
  • output: 80W
  • input voltage: 180 to 295V AC (47 to 63Hz)
  • maximal input inrush current: 55A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +85°C
  • dimensions: 360x30x21mm
  • weight: 295g
LDC-80B

LDC-80B

111813 LDC-80B LDC-80B 4711287456713 Mean Well LED driver series LDC-80. LED drivers in an aluminium housing with a universal input, a constant power and 80W. These flickerfree SELV compliant devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: LDC-80 (not dimmable), LDC-80B (3 in 1 dimming function, 0 to 10V DC, PWM, potentiometer) and LDC-80DA (DALI, push dimming). single output output: 80W input voltage: 180 to 295V AC (47 to 63Hz) maximal input inrush current: 55A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -25 to +85°C dimensions: 360x30x21mm weight: 295g

Specifications

manufacturer
Manufacturer's name LDC-80B
GTIN 4711287456713
Output current range [mA] 1400...2100
Efficiency [%] 90
Output power [W] 80
Ripple & noise [%] 3
Output voltage range [V] 27...56
Data Sheet

Unit price

27,19 €

Volume discounts

Quantity Unit price
50 + 25,29 €

Stock: 18
