LDDS-300HWB

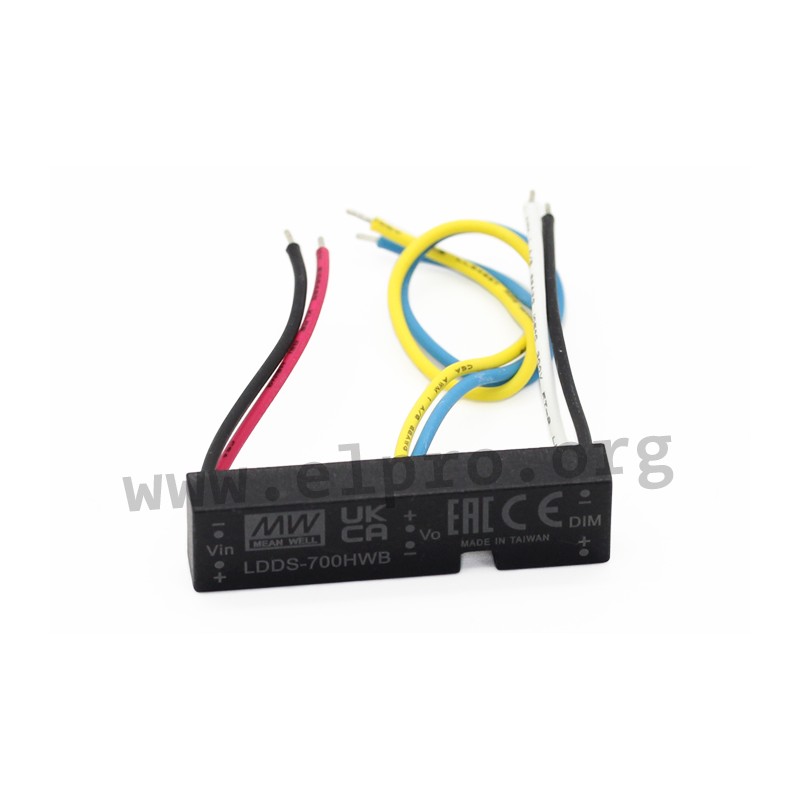

Mean Well DC/DC LED driver series LDDS-H

DC/DC step-down LED drivers in a plastic housing (UL94V-0) with a constant current output, a wide input voltage range and a remote ON/OFF function. These devices have a 3 in 1 dimming function and are protected against overtemperature as well as short circuit. They are suitable for LED lightning applications and comply with EN55015. We offer the following types of this Mean Well series: LDDS-250HWB, LDDS-300HWB, LDDS-350HWB, LDDS-500HWB, LDDS-700HWB and LDDS-1000HWB.

  • output current tolerance: ±5%
  • operating temperature: -40 to +55°C
  • connection: stranded wires
  • cable length: 10cm
  • dimensions: 47x12x7mm
  • weight: 9,5g
LDDS-300HWB, Mean Well DC/DC step-down LED drivers, dimmable, LDDS-H series

LDDS-300HWB

237689 LDDS-300HWB LDDS-300HWB 4711287480503 Mean Well DC/DC LED driver series LDDS-H. DC/DC step-down LED drivers in a plastic housing (UL94V-0) with a constant current output, a wide input voltage range and a remote ON/OFF function. These devices have a 3 in 1 dimming function and are protected against overtemperature as well as short circuit. They are suitable for LED lightning applications and comply with EN55015. We offer the following types of this Mean Well series: LDDS-250HWB, LDDS-300HWB, LDDS-350HWB, LDDS-500HWB, LDDS-700HWB and LDDS-1000HWB. output current tolerance: ±5% operating temperature: -40 to +55°C connection: stranded wires cable length: 10cm dimensions: 47x12x7mm weight: 9,5g

Specifications

manufacturer
Manufacturer's name LDDS-300HWB
GTIN 4711287480503
Input voltage range [V] 12...56
Efficiency [%] 95
Output current [A] 0,3
Ripple [mVp-p] 150
Output voltage range [V] 2...45
Data Sheet

Unit price

8,59 €

Volume discounts

Quantity Unit price
50 + 7,99 €

Stock: 0
Next incoming goods:
CW 25/2024
20 units

Further delivery:
CW 39/2024
