LRS-1200-48

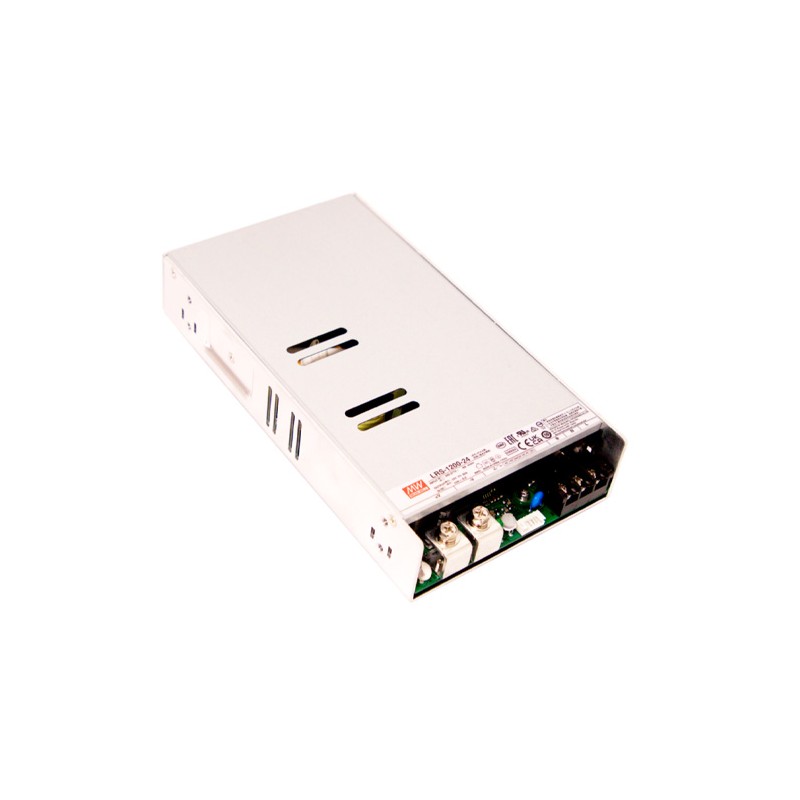

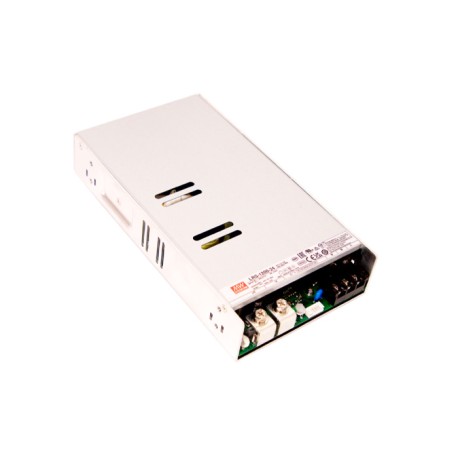

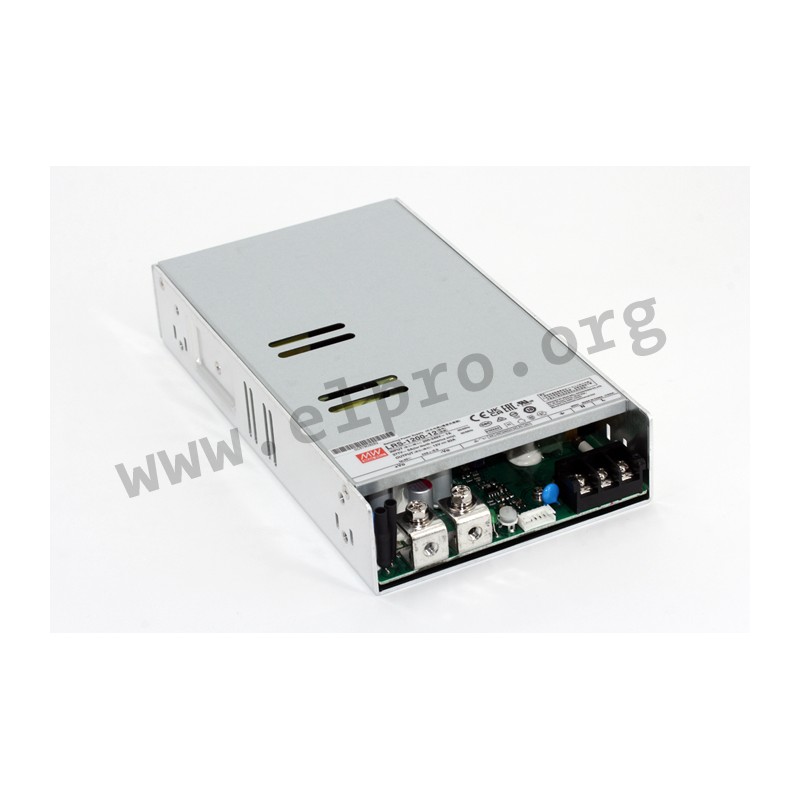

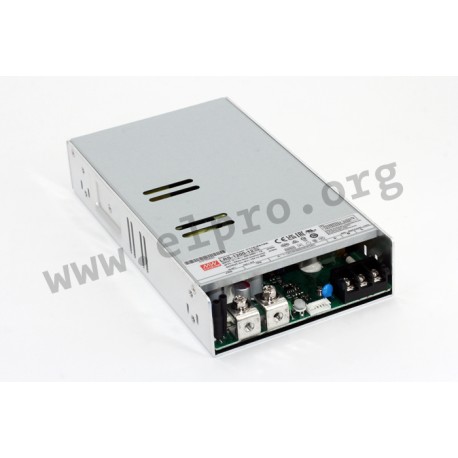

Mean Well  AC/DC industry power supplies series LRS-1200

Built-in power supplies in a enclosed metal housing, with a programmable output voltage, and a output current of 1200W. These devices are equipped with complete protections and 3G anti-vibration capability, they are suitable for DC, and have a DC-OK signal. We offer the following types of this Mean Well series: LRS-1200-12, LRS-1200-24, LRS-1200-36, and LRS-1200-48.

  • single output
  • output current: 1200W
  • operating temperature: -30 to 70°C
  • dimensions: 225x124x41mm
  • weight: 1.280g
LRS-1200-48, Mean Well AC/DC industry power supplies, 1200W, LRS-1200 series

LRS-1200-48

252910 LRS-1200-48 LRS-1200-48 Mean Well  AC/DC industry power supplies series LRS-1200. Built-in power supplies in a enclosed metal housing, with a programmable output voltage, and a output current of 1200W. These devices are equipped with complete protections and 3G anti-vibration capability, they are suitable for DC, and have a DC-OK signal. We offer the following types of this Mean Well series: LRS-1200-12, LRS-1200-24, LRS-1200-36, and LRS-1200-48. single output output current: 1200W operating temperature: -30 to 70°C dimensions: 225x124x41mm weight: 1.280g

Specifications

manufacturer
Manufacturer's name LRS-1200-48
Output voltage [V] 48
Input voltage range [V] 48-56
Efficiency [%] 94
Output current [A] 0...25
Data Sheet

Unit price

117,49 €

Volume discounts

Quantity Unit price
50 + 114,99 €

Stock: 0
Next incoming goods:
CW 51/2025
2 units

Further delivery:
CW 05/2026
