MDD01M-12

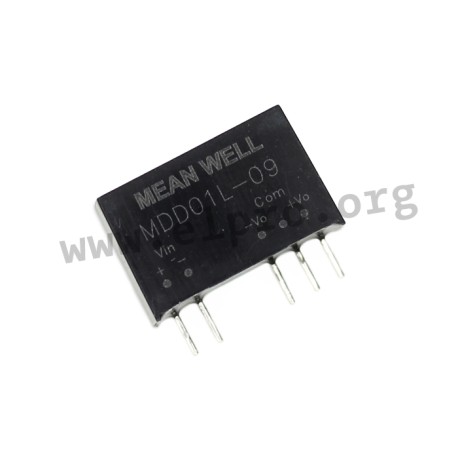

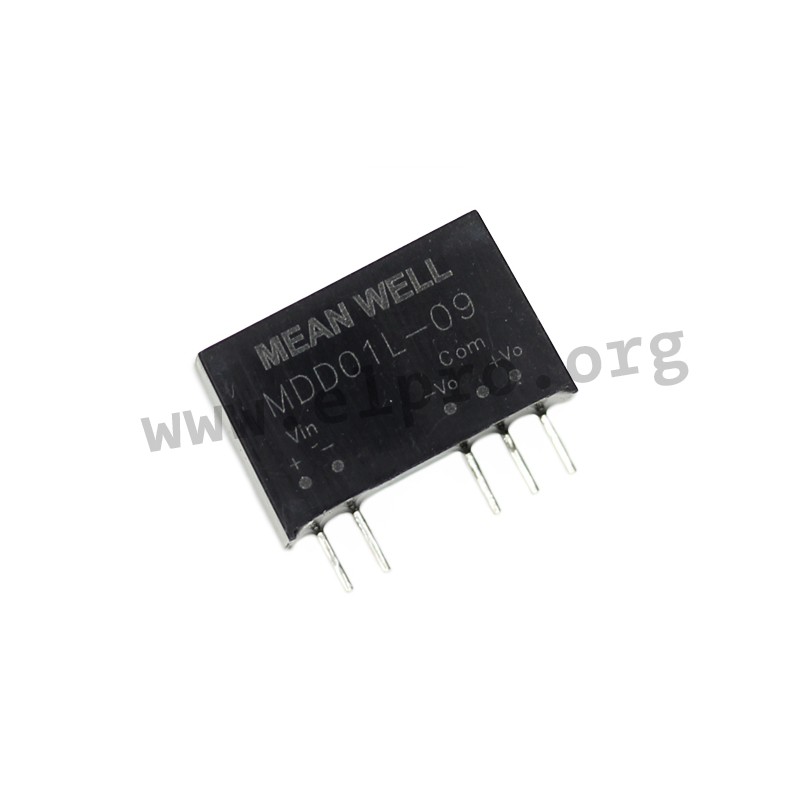

Mean Well DC/DC converter series MDD01

Unregulated DC/DC converters in a SIL7 housing with 1W and a low patient leakage current (<2µA). These devices are suitable for medical technology applications (1xMOPP/2xMOPP) and are protected against short circuit (max. 3s). They have a high efficiency (up to 82%), are reasonably priced and comply with UL60601-1, EN55011 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: MDD01L-05, MDD01L-09, MDD01L-12, MDD01L-15, MDD01M-05, MDD01M-09, MDD01M-12, MDD01M-15, MDD01N-05, MDD01N-09, MDD01N-12 and MDD01N-15.

  • dual output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 6000/4200V DC
  • operating temperature: -40 to +85°C
  • weight: 4,2g
MDD01M-12, Mean Well DC/DC converters, 1W, SIL7 housing, for medical technology, MDD01 series

MDD01M-12

110335 MDD01M-12 MDD01M-12 4711287472003 Mean Well DC/DC converter series MDD01. Unregulated DC/DC converters in a SIL7 housing with 1W and a low patient leakage current (&lt;2µA). These devices are suitable for medical technology applications (1xMOPP/2xMOPP) and are protected against short circuit (max. 3s). They have a high efficiency (up to 82%), are reasonably priced and comply with UL60601-1, EN55011 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: MDD01L-05, MDD01L-09, MDD01L-12, MDD01L-15, MDD01M-05, MDD01M-09, MDD01M-12, MDD01M-15, MDD01N-05, MDD01N-09, MDD01N-12 and MDD01N-15. dual output output: 1W output voltage tolerance: ±5% maximal ripple and noise: 75mVpp withstand voltage: 6000/4200V DC operating temperature: -40 to +85°C weight: 4,2g

Specifications

manufacturer
Manufacturer's name MDD01M-12
GTIN 4711287472003
Input voltage [V] 10,8...13,2
Output voltage [V] ±12
Output current range [mA] ±5...42
Efficiency [%] 75
Data Sheet

Unit price

5,09 €

Volume discounts

Quantity Unit price
50 + 4,59 €

Stock: 26
Further delivery:
CW 39/2024
