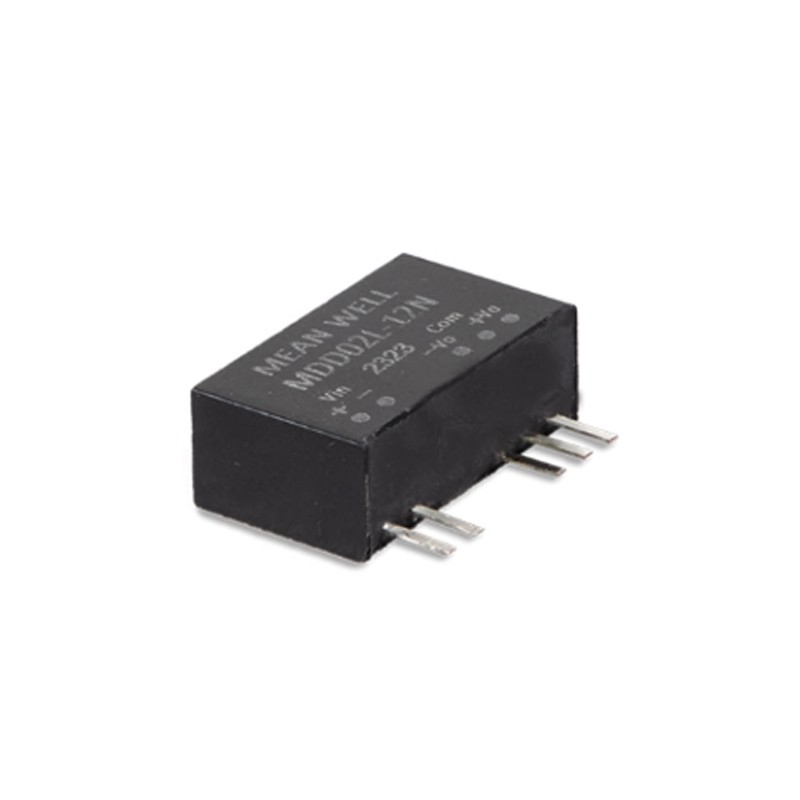

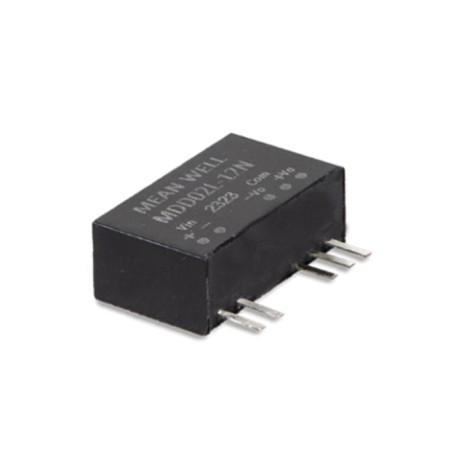

MDD02L-12N

Mean Well DC/DC converter series MDD02-N

Unregulated DC/DC converters in a SIP7 housing with 2W, a high I/O isolation (6KVDC) and a low patient leakage current (<2µA). These devices are low in cost, suitable for medical technology applications (1xMOPP/2xMOOP), and are protected against short circuit. We offer the following types of this Mean Well series: MDD02L-05N, MDD02L-12N, MDD02L-15N, MDD02M-05N, MDD02M-12N, MDD02M-15N, MDD02N-05N, MDD02N-12N, and MDD02N-15N.

  • singel output
  • output: 2W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 6000/V DC
  • operating temperature: -40 to +95°C
  • weight: 2,8g
  • dimensions: 19,7x7,1x11,5mm
MDD02L-12N, Mean Well DC/DC converters, 2W, SIP7 housing, for medical technology, MDD02-N series

MDD02L-12N

246703 MDD02L-12N MDD02L-12N Mean Well DC/DC converter series MDD02-N. Unregulated DC/DC converters in a SIP7 housing with 2W, a high I/O isolation (6KVDC) and a low patient leakage current (&lt;2&micro;A). These&nbsp;devices are low in cost, suitable for medical technology applications (1xMOPP/2xMOOP), and are protected against short circuit. We offer the following types of this Mean Well series: MDD02L-05N, MDD02L-12N, MDD02L-15N, MDD02M-05N, MDD02M-12N, MDD02M-15N, MDD02N-05N, MDD02N-12N, and MDD02N-15N. singel output output: 2W output voltage tolerance:&nbsp;&plusmn;5% maximal ripple and noise: 100mVpp withstand voltage: 6000/V DC operating temperature: -40 to +95&deg;C weight: 2,8g dimensions: 19,7x7,1x11,5mm

Specifications

manufacturer
Manufacturer's name MDD02L-12N
Output voltage [V] ±12
Input voltage range [V] 4,5...5,5
Output current [mA] ±84
Efficiency [%] 84
Data Sheet

Unit price

4,89 €

Volume discounts

Quantity Unit price
50 + 4,39 €

Stock: 46
Further delivery:
CW 09/2026
