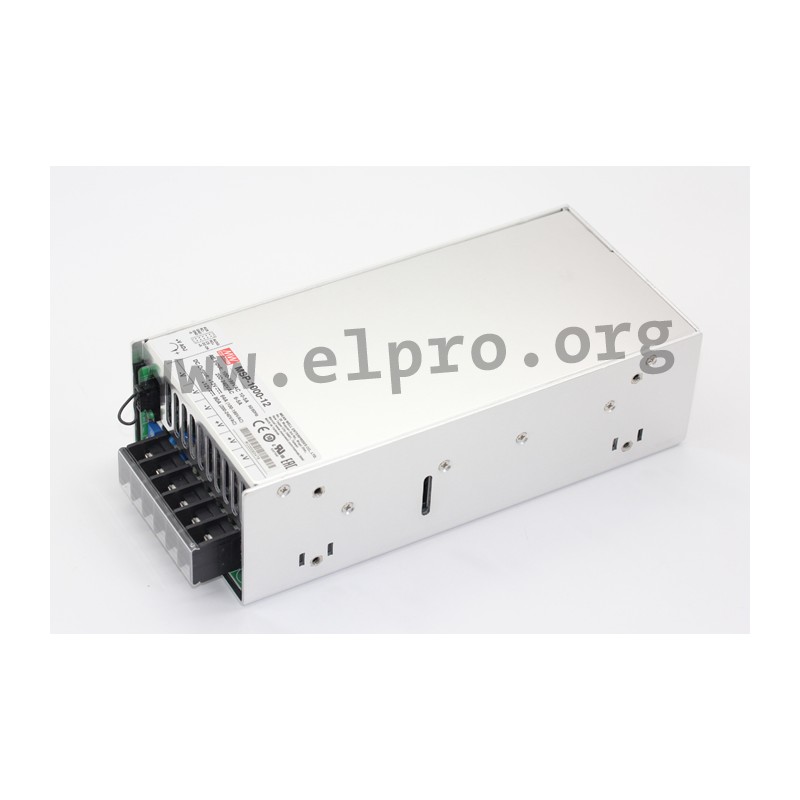

MSP-1000-24

Mean Well power supply series MSP-1000

Switching power supplies in an enclosed housing with 1000W, a built-in auxiliary power (standby 5V/0,3A), screw terminals, a built-in remote sense function, a fan, a parallel function (3+1), a built-in remote ON/OFF control, a universal input and a DC OK signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for medical applications and comply with EN60601-1 (MOOP level), EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: MSP-1000-12, MSP-1000-15, MSP-1000-24 and MSP-1000-48.

  • single output
  • output: 960 to 1008W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <360µA (earth) / <100µA (touch)
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 1530g

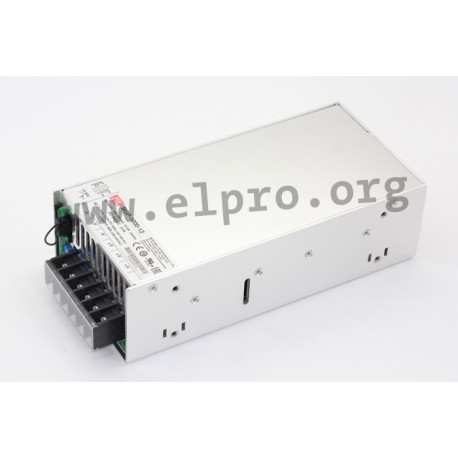

MSP-1000-24, Mean Well switching power supplies, 1000W, for medical technology, PFC, MSP-1000 series

MSP-1000-24

111761 MSP-1000-24 MSP-1000-24 4711287437699 Mean Well power supply series&nbsp;MSP-1000. Switching power supplies in an enclosed housing with 1000W, a built-in auxiliary power (standby 5V/0,3A), screw terminals, a built-in remote sense function, a fan, a parallel function (3+1), a built-in remote ON/OFF control, a universal input and a DC OK signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for medical applications and comply with&nbsp;EN60601-1 (MOOP level), EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series:&nbsp;MSP-1000-12, MSP-1000-15, MSP-1000-24 and MSP-1000-48. single output output: 960 to 1008W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A leakage current: &lt;360&micro;A (earth) / &lt;100&micro;A (touch) overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70&deg;C weight: 1530g

Specifications

manufacturer
Manufacturer's name MSP-1000-24
GTIN 4711287437699
Output voltage [V] 24
Efficiency [%] 93
Output current range [A] 0...42
Output voltage tolerance: [%] 1
Output power [W] 1008
Ripple [mVp-p] 200
Data Sheet

Unit price

195,89 €

Volume discounts

Quantity Unit price
50 + 192,59 €

Stock: 9
Next incoming goods:
CW 30/2024
24 units

Further delivery:
CW 32/2024
