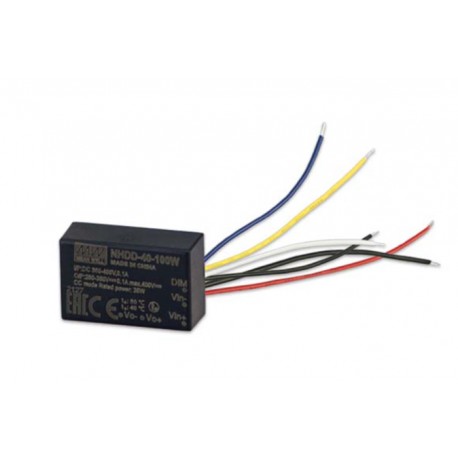

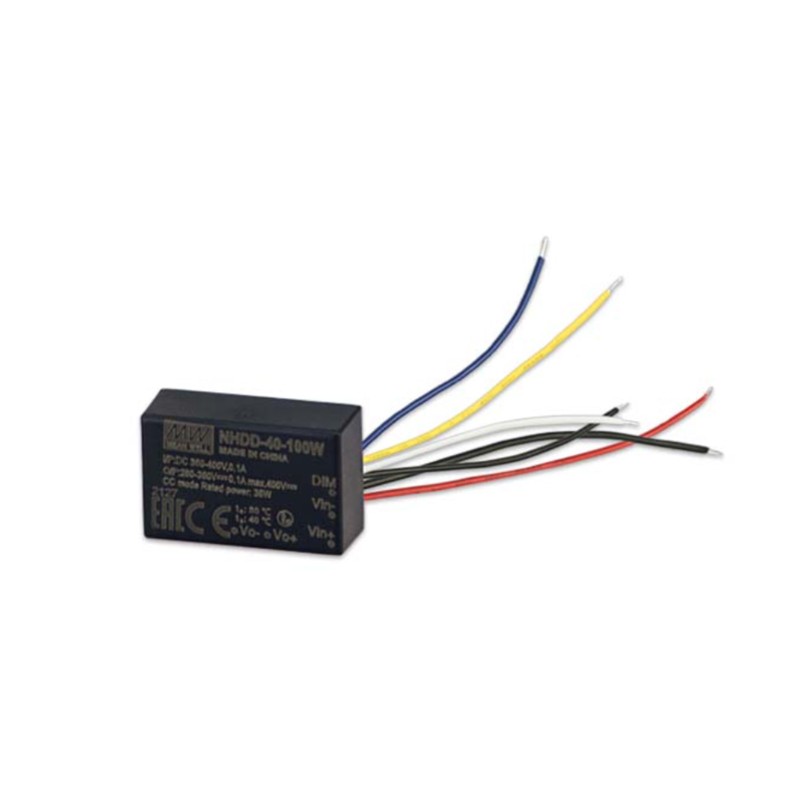

NHDD-40-100W

Mean Well DC/DC converter series NHDD-40

DC/DC step-down LED drivers in an enclosed plastic housing (UL94V-0) with 0,1A and a constant current. These devices are suitable for 380V DC bus lighting applications and are protected against overtemperature, voltage reversal as well as short circuit. They have a built-in PWM as well as a remote ON/OFF control and comply with EN61347, EN55015 as well as EN61000-4-2. We offer the following types of this Mean Well series: NHDD-40-100 (with PCB pins) and NHDD-40-100W (with stranded wires).

  • single output
  • output: 35W
  • input voltage: 360 to 420V DC (typ. 380V DC)
  • output current tolerance: ±15%
  • operating temperature: -30 to +40°C
  • dimensions: 32,1x20,5x12,5mm
NHDD-40-100W, Mean Well DC/DC step-down LED drivers, 0,1A, NHDD-40 series

NHDD-40-100W

241404 NHDD-40-100W NHDD-40-100W 4711287458090 Mean Well DC/DC converter series NHDD-40. DC/DC step-down LED drivers in an enclosed plastic housing (UL94V-0) with 0,1A and a constant current. These devices are suitable for 380V DC bus lighting applications and are protected against overtemperature, voltage reversal as well as short circuit. They have a built-in PWM as well as a remote ON/OFF control and comply with EN61347, EN55015 as well as EN61000-4-2. We offer the following types of this Mean Well series: NHDD-40-100 (with PCB pins) and NHDD-40-100W (with stranded wires). single output output: 35W input voltage: 360 to 420V DC (typ. 380V DC) output current tolerance: ±15% operating temperature: -30 to +40°C dimensions: 32,1x20,5x12,5mm

Specifications

manufacturer
Manufacturer's name NHDD-40-100W
GTIN 4711287458090
Output voltage [V] 320...360
Efficiency [%] 95
Output current [A] 0,1
Input voltage [V DC] 360...420
Data Sheet

Unit price

5,39 €

Volume discounts

Quantity Unit price
50 + 4,89 €

Stock: 17
Further delivery:
CW 36/2024
