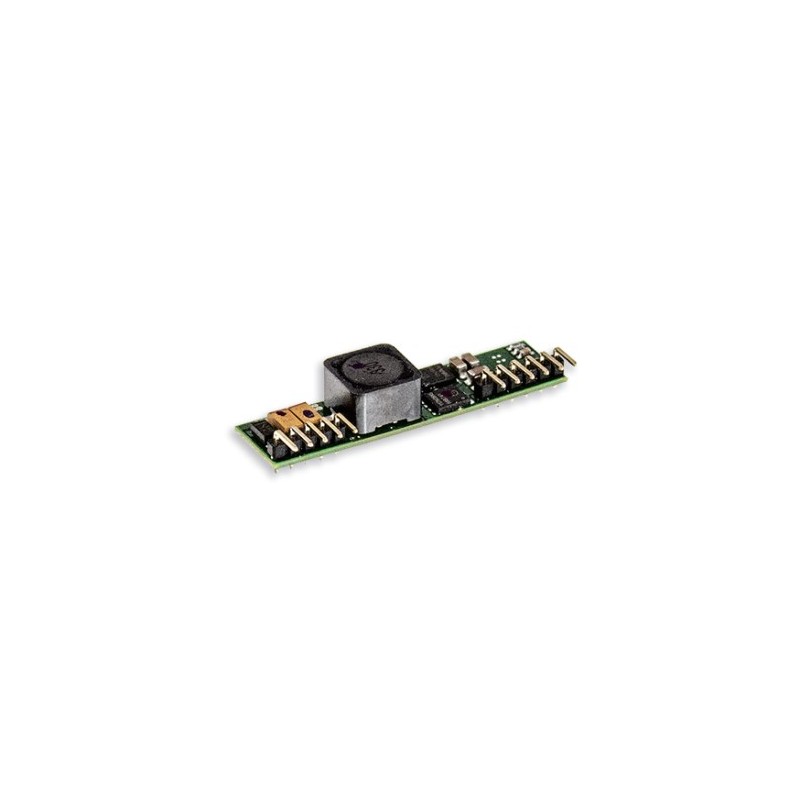

NID35-12

Mean Well DC/DC converter series NID35

Non-isolated DC/DC converters in an open frame SIL housing with 35W, a regulated output voltage and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: NID35-5, NID35-12, NID35-15 and NID35-24.

  • single output
  • output: 17,5 to 36W
  • overload protection: 120 to 250%
  • operating temperature: -30 to +85°C
  • weight: 9g

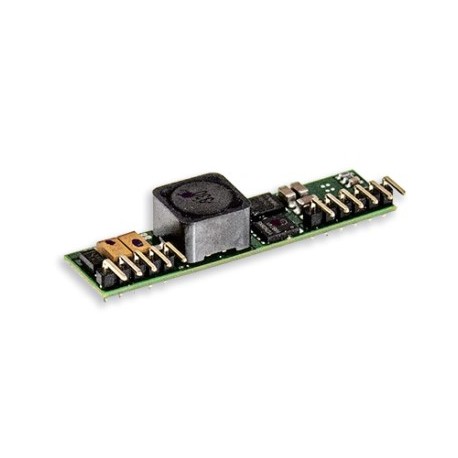

Mean Well NID35 series

NID35-12

113281 NID35-12 NID35-12 4711287465883 Mean Well DC/DC converter series NID35. Non-isolated DC/DC converters in an open frame SIL housing with 35W, a regulated output voltage and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: NID35-5, NID35-12, NID35-15 and NID35-24. single output output: 17,5 to 36W overload protection: 120 to 250% operating temperature: -30 to +85°C weight: 9g

Specifications

manufacturer
Manufacturer's name NID35-12
GTIN 4711287465883
Input voltage [V] 20...53
Output voltage [V] 12
Efficiency [%] 95
Output current range [A] 0...2,9
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 120
Data Sheet

Unit price

8,89 €

Volume discounts

Quantity Unit price
50 + 8,29 €

Stock: 100
Further delivery:
CW 33/2024
