> Power supplies>Voltage converters>DC/DC converters, open frame>Mean Well DC/DC converters, 65W, open frame (PCB), SIL housing, NID65 series>NID65-24

Manufacturers

NID65-24

Mean Well DC/DC converter series NID65

Non-isolated DC/DC converters in an open frame SIL housing with 65W, a remote ON/OFF control and a regulated output voltage. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: NID65-5, NID65-12, NID65-15 and NID65-24.

  • single output
  • output: 32,5 to 64,8W
  • overload protection: 120 to 150%
  • operating temperature: -30 to +85°C
  • weight: 19g

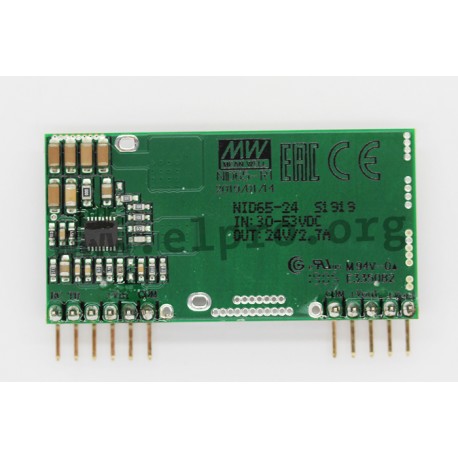

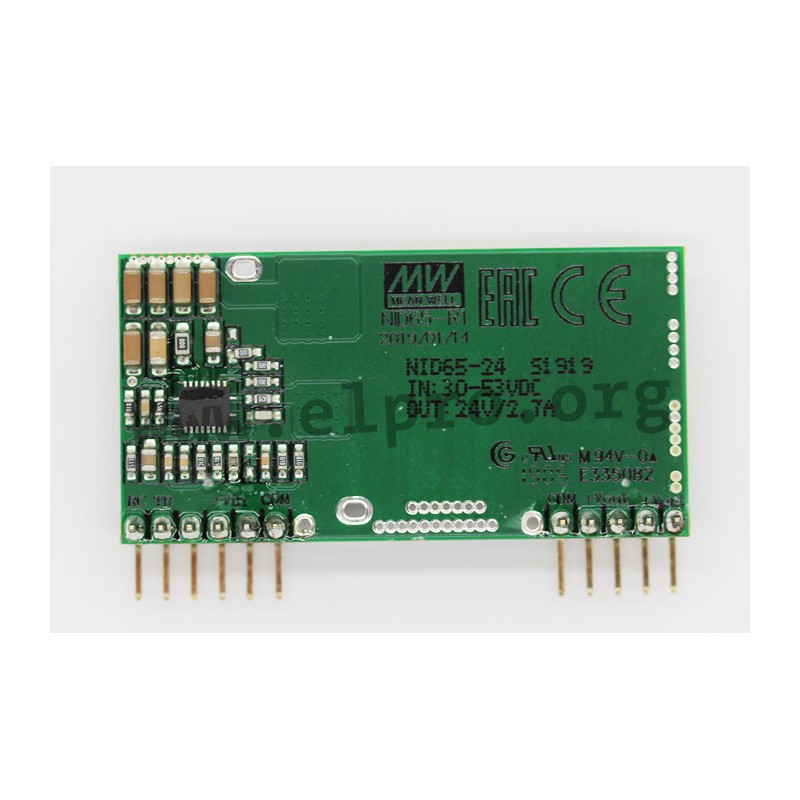

NID65-24, Mean Well DCDC converters open frame, 65W, SIP, NID65 series

NID65-24

113287 NID65-24 NID65-24 4711287465944 Mean Well DC/DC converter series NID65. Non-isolated DC/DC converters in an open frame SIL housing with 65W, a remote ON/OFF control and a regulated output voltage. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: NID65-5, NID65-12, NID65-15 and NID65-24. single output output: 32,5 to 64,8W overload protection: 120 to 150% operating temperature: -30 to +85°C weight: 19g

Specifications

manufacturer
Manufacturer's name NID65-24
GTIN 4711287465944
Input voltage [V] 30...53
Output voltage [V] 24
Output current range [A] 0...2,7
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 200
Data Sheet

Unit price

10,59 €

Volume discounts

Quantity Unit price
50 + 9,79 €

Stock: 24
Further delivery:
CW 34/2024
