NPB-750-48

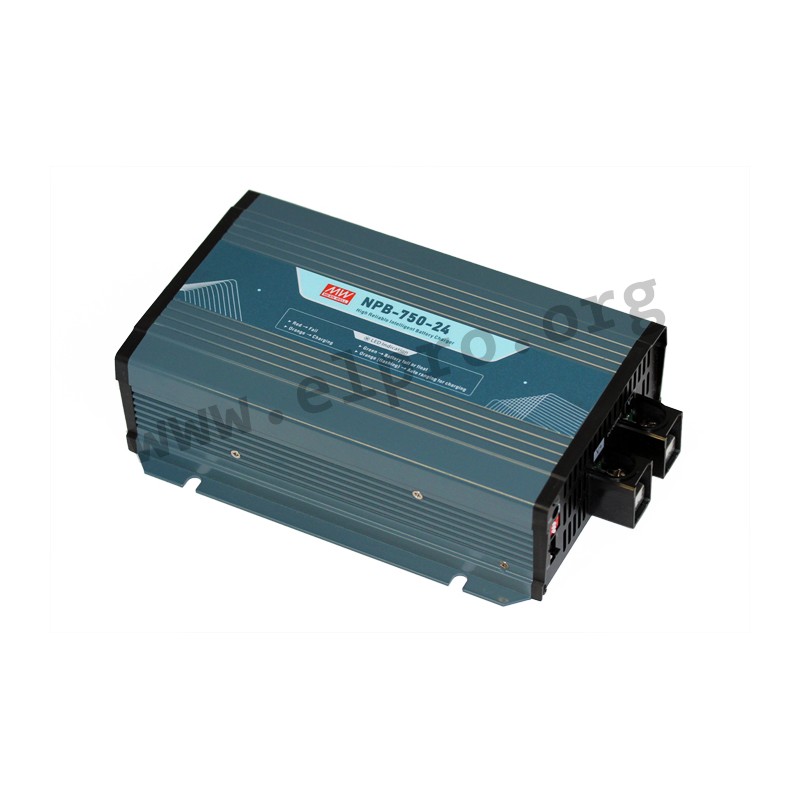

Mean Well battery charger series NPB-750

External battery chargers with 750W, a remote ON/OFF control, a built-in CANBus interface and a fan. These devices are suitable for Li-ion as well as lead-acid batteries and are protected against voltage reversal, overvoltage, overtemperature as well as short circuit. They have a digitally (SBP-001) resp. a manually adjustable charging curve (DIL switch) and comply with EN62368-1, EN60335-1/2-29, EN55032 class B, EN55014-1 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-750-12, NPB-750-24 and NPB-750-48.

  • output: 722,4 to 759,4W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • AC current: 4A
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • storage temperature: -40 to +85°C
  • dimensions: 230x158x67mm
  • weight: 1840g

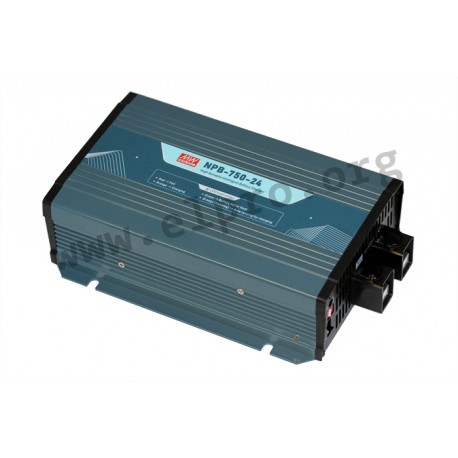

NPB-750-48, Mean Well external battery chargers, 750W, for lead-acid and Li-ion batteries, NPB-750 Serie

NPB-750-48

241295 NPB-750-48 NPB-750-48 4711287421452 Mean Well battery charger series NPB-750. External battery chargers with 750W, a remote ON/OFF control, a built-in CANBus interface and a fan. These devices are suitable for Li-ion as well as lead-acid batteries and are protected against voltage reversal, overvoltage, overtemperature as well as short circuit. They have a digitally (SBP-001) resp. a manually adjustable charging curve (DIL switch) and comply with EN62368-1, EN60335-1/2-29, EN55032 class B, EN55014-1 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-750-12, NPB-750-24 and NPB-750-48. output: 722,4 to 759,4W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC AC current: 4A maximal input inrush current: 50A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C storage temperature: -40 to +85°C dimensions: 230x158x67mm weight: 1840g

Specifications

manufacturer
Manufacturer's name NPB-750-48
GTIN 4711287421452
Charging voltage [V] 57,6
Float charge voltage [V] 55,2
Recommended accu capacity [Ah] 40...130
Efficiency [%] 93
Output current [A] 11,3
Data Sheet

Unit price

159,19 €

Volume discounts

Quantity Unit price
50 + 156,49 €

Stock: 60
Further delivery:
CW 34/2024
