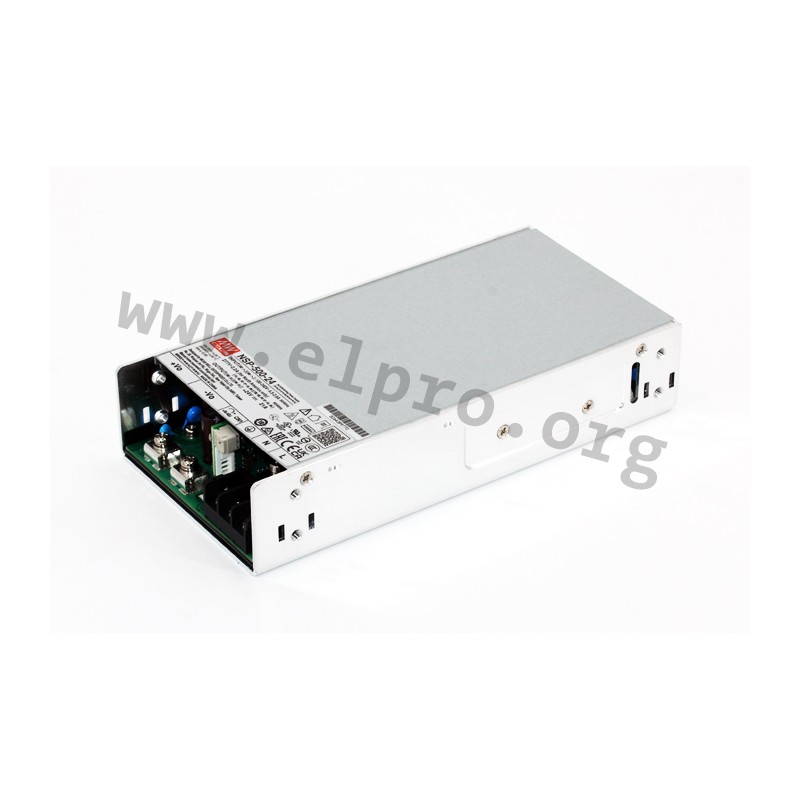

NSP-500-15

Mean Well switching power supplies series NSP-500

Switching power supplies in an enclosed housing with 500W, adjustable output voltage, a remote ON/OFF control, remote sense, and DC-OK signal. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. We offer the following types of this Mean Well series: NSP-500-5, NSP-500-12, NSP-500-15, NSP-500-24, NSP-500-27, NSP-500-36, NSP-500-48, and NSP-500-60.

  • single output
  • 2xMOPP
  • output: 450 to 504W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 431V DC
  • operating temperature: -40 to +85°C
  • dimensions: 199x99x41mm

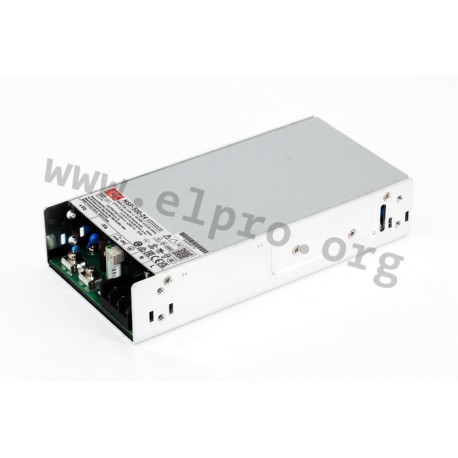

NSP-500-15, Mean Well switching power supplies, 500W, 2xMOPP, NSP-500 series

NSP-500-15

256139 NSP-500-15 NSP-500-15 Mean Well switching power supplies series NSP-500. Switching power supplies in an enclosed housing with 500W, adjustable output voltage, a remote ON/OFF control, remote sense, and DC-OK signal. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. We offer the following types of this Mean Well series: NSP-500-5, NSP-500-12, NSP-500-15, NSP-500-24, NSP-500-27, NSP-500-36, NSP-500-48, and NSP-500-60. single output 2xMOPP output: 450 to 504W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 431V DC operating temperature: -40 to +85°C dimensions: 199x99x41mm

Specifications

manufacturer
Manufacturer's name NSP-500-15
Output voltage [V] 15
Efficiency [%] 92
Output current range [A] 33,4
Output power [W] 501
Ripple [mVp-p] 200
Data Sheet

Unit price

72,69 €

Volume discounts

Quantity Unit price
50 + 71,19 €

Stock: 0
Further delivery:
CW 13/2026
