PHP-3500-230

Mean Well power supply series PHP-3500-HV

Switching power supplies in a U-bracket housing with 3500W, a universal input, a low profile (1U), a built-in remote ON/OFF control and a water cooling system (optional). These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a PMBus protocol and comply with EN62368-1, EN61558-1, EN60335-1, EN55032 class B, EN61000-3-12 as well as EN61000-3-3. We offer the following types of this Mean Well series: PHP-3500-115, PHP-3500-230 and PHP-3500-380.

  • single output
  • output: 3500W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <2mA
  • withstand voltage I/P-O/P: 6000V DC
  • withstand voltage I/P-FG: 4000V DC
  • withstand voltage O/P-FG: 4000V DC
  • operating temperature: -30 to +70°C
  • dimensions: 380x141,4x60mm
  • weight: 4500g

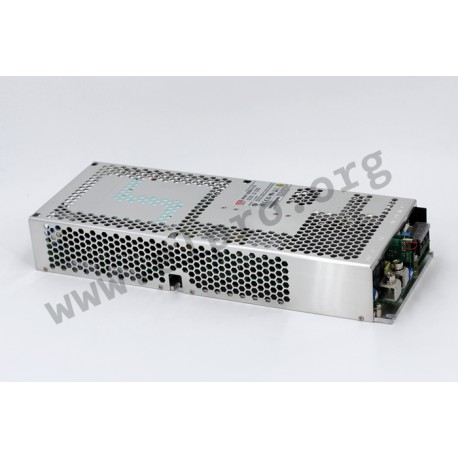

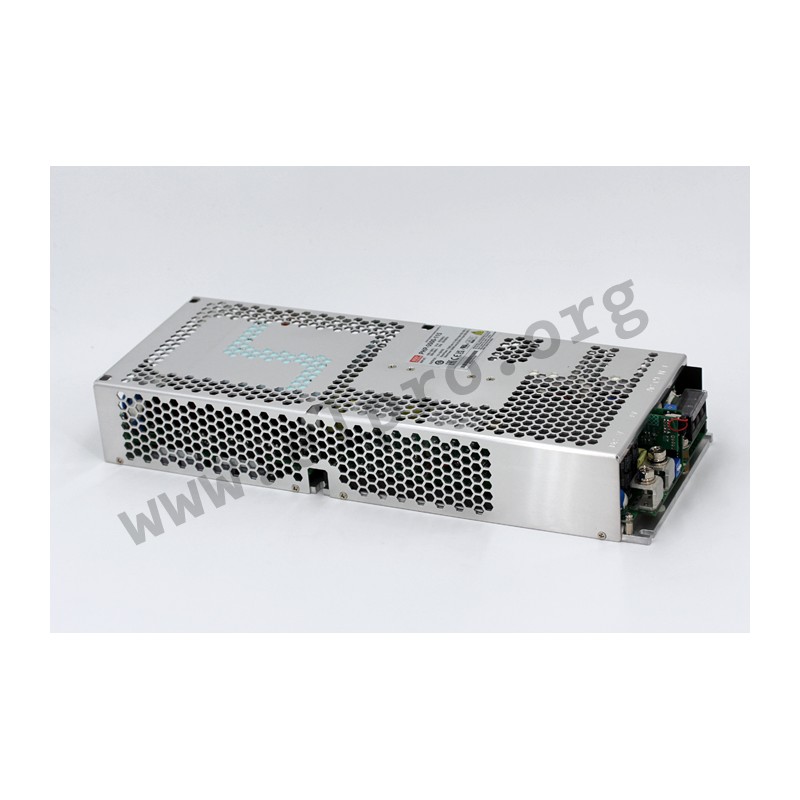

PHP-3500-230, Mean Well switching power supplies, 3500W, high voltage, U-bracket, PMBus, PHP-3500-HV series

PHP-3500-230

241219 PHP-3500-230 PHP-3500-230 4711287421025 Mean Well power supply series PHP-3500-HV. Switching power supplies in a U-bracket housing with 3500W, a universal input, a low profile (1U), a built-in remote ON/OFF control and a water cooling system (optional). These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a PMBus protocol and comply with EN62368-1, EN61558-1, EN60335-1, EN55032 class B, EN61000-3-12 as well as EN61000-3-3. We offer the following types of this Mean Well series: PHP-3500-115, PHP-3500-230 and PHP-3500-380. single output output: 3500W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 80A leakage current: &lt;2mA withstand voltage I/P-O/P: 6000V DC withstand voltage I/P-FG: 4000V DC withstand voltage O/P-FG: 4000V DC operating temperature: -30 to +70°C dimensions: 380x141,4x60mm weight: 4500g

Specifications

manufacturer
Manufacturer's name PHP-3500-230
GTIN 4711287421025
Output voltage [V] 230
Efficiency [%] 95,5
Output current [A] 16,1
Output voltage tolerance: [%] 1
Output power [W] 3500
Ripple [mVp-p] 2300
Data Sheet

Unit price

892,09 €

Stock: 12
Further delivery:
CW 34/2024
