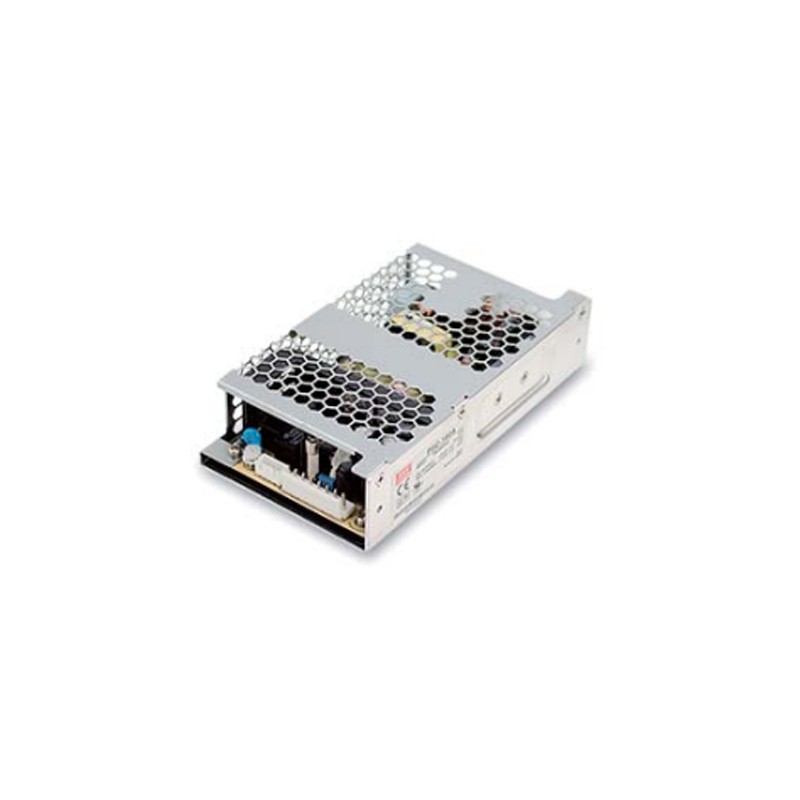

PSC-160A-C

Mean Well battery charger series PSC-160

Open frame (PSC-160A, PSC-160B) or closed frame (PSC-160A-C, PSC-160B-C) type switching power supplies with 160W, a universal input, a battery charger, a battery low signal, a battery low protection and a power fail signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a UPS function and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PSC-160A, PSC-160B, PSC-160A-C, and PSC-160B-C.

  • single output
  • output: 160W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1mA
  • overload protection: 105 to 150%
  • withstand voltage  I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 350g

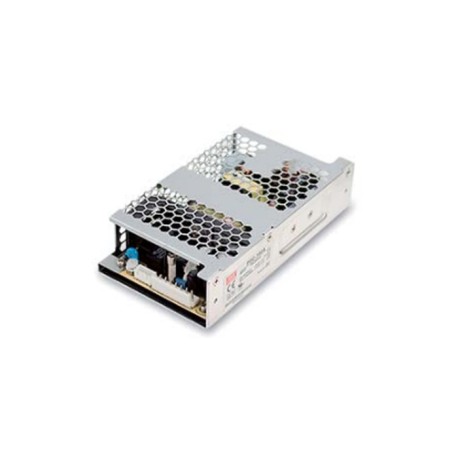

PSC-160A-C, Mean Well battery chargers, 160W, UPS function, open frame PCB or enlcosed, PSC-160 series

PSC-160A-C

255610 PSC-160A-C PSC-160A-C 4711232760513 Mean Well battery charger series PSC-160. Open frame (PSC-160A, PSC-160B) or closed frame (PSC-160A-C, PSC-160B-C) type switching power supplies with 160W, a universal input, a battery charger, a battery low signal, a battery low protection and a power fail signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a UPS function and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PSC-160A, PSC-160B, PSC-160A-C, and PSC-160B-C. single output output: 160W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current: &lt;1mA overload protection: 105 to 150% withstand voltage  I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 350g

Specifications

manufacturer
Manufacturer's name PSC-160A-C
GTIN 4711232760513
Output voltage [V] 13,8
Efficiency [%] 88
Output current range [A] 0...11,6 / 0...4
Output voltage tolerance: [%] -1
Output power [W] 160
Ripple [mVp-p] 150
Data Sheet

Unit price

42,49 €

Stock: 0
Further delivery:
CW 11/2026
