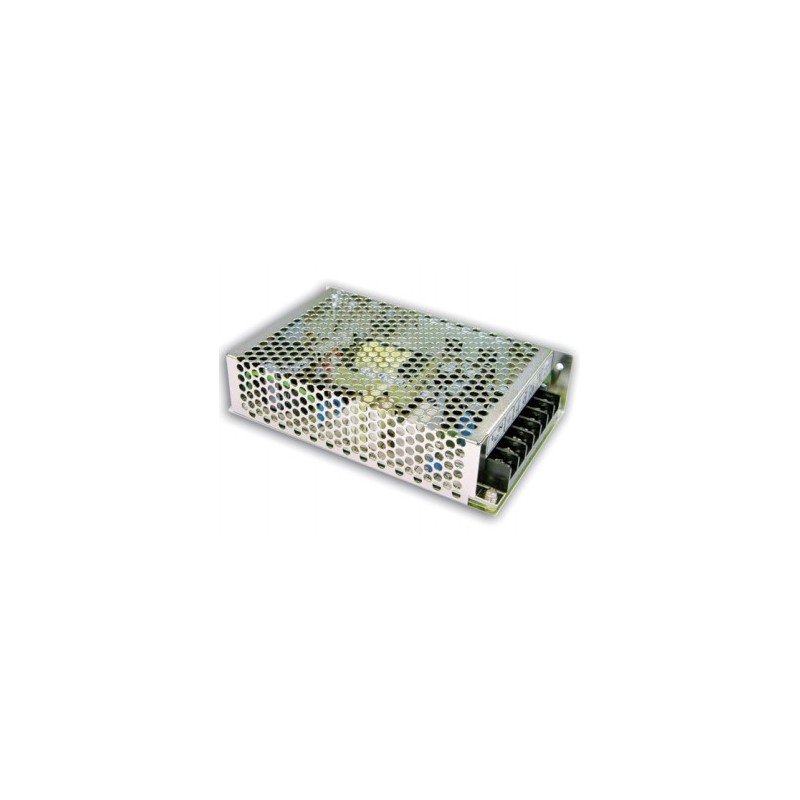

RD-85B

Mean Well power supply series RD-85

Switching power supplies in an enclosed housing with 85W, screw terminals, a universal input and a dual output. These devices are using long life electrolytic capacitors (105°C) and are protected against short circuit, overvoltage as well as overload (auto recovery). They comply with EN62368-1, UL62368-1, EN55032 class B and EN61000-4-2. We offer the following types of this Mean Well series: RD-85A and RD-85B.

  • dual output
  • output: 88W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 50A
  • maximal leakage current: <2mA
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 600g

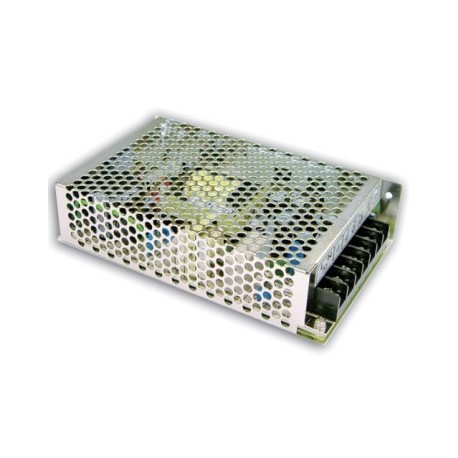

RD-85B, Mean Well switching power supplies, 85W, dual output, RD-85 series

RD-85B

135748 RD-85B RD-85B 4711287434018 Mean Well power supply series RD-85. Switching power supplies in an enclosed housing with 85W, screw terminals, a universal input and a dual output. These devices are using long life electrolytic capacitors (105&deg;C) and are protected against short circuit, overvoltage as well as overload (auto recovery). They&nbsp;comply with&nbsp;EN62368-1, UL62368-1, EN55032 class B and EN61000-4-2. We offer the following types of this Mean Well series: RD-85A and RD-85B. dual output output: 88W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 50A maximal leakage current: &lt;2mA overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70&deg;C weight: 600g

Specifications

manufacturer
Manufacturer's name RD-85B
GTIN 4711287434018
Output voltage [V] 5/24
Efficiency [%] 79
Output current range [A] 0...10/0...2,5
Output voltage tolerance: [%] 2/5
Output power [W] 88
Ripple [mVp-p] 80/150
Data Sheet

Unit price

22,79 €

Volume discounts

Quantity Unit price
50 + 21,29 €

Stock: 8
Next incoming goods:
CW 25/2024
72 units

Further delivery:
CW 32/2024
