RID-65B

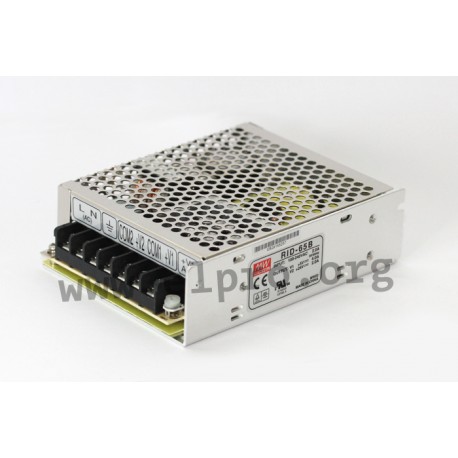

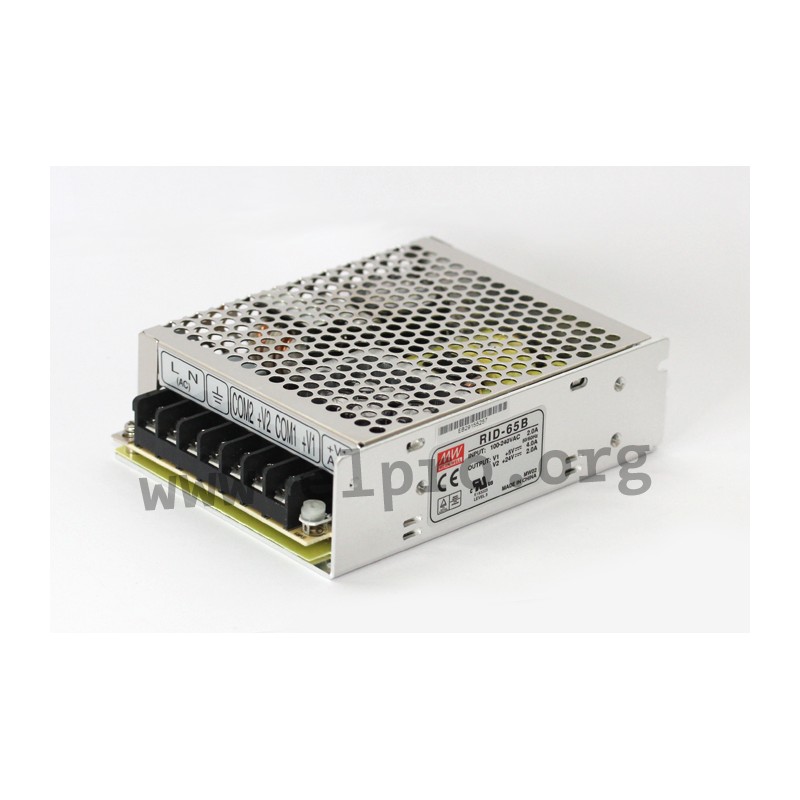

Mean Well power supply series RID-65

Switching power supplies in an enclosed housing with 65W, screw terminals, a universal input and 105°C long life caps. These devices have isolated outputs for CH1 + CH2 and are protected against short circuit, overload (auto recovery) as well as overvoltage. They comply with EN62368-1, UL62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: RID-65A and RID-65B.

  • dual output
  • output: 66 to 68W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 440g
Meanwell RID-65 series

RID-65B

38290 RID-65B RID-65B 4711287434131 Mean Well power supply series RID-65. Switching power supplies in an enclosed housing with 65W, screw terminals, a universal input and 105°C long life caps. These devices have isolated outputs for CH1 + CH2 and are protected against short circuit, overload (auto recovery) as well as overvoltage. They comply with EN62368-1, UL62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: RID-65A and RID-65B. dual output output: 66 to 68W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 40A maximal leakage current: 2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 440g

Specifications

manufacturer
Manufacturer's name RID-65B
GTIN 4711287434131
Output voltage [V] 5/24
Phase 2 phase
Efficiency [%] 85
Output current range [A] 0,3...8/0,2...3
Output voltage tolerance: [%] 2/10
Output power [W] 68
Ripple [mVp-p] 80/150
Data Sheet

Unit price

19,99 €

Volume discounts

Quantity Unit price
50 + 18,89 €

Stock: 35
Further delivery:
CW 05/2026
