RQ-65B

Mean Well power supply series RQ-65

Switching power supplies in an enclosed housing with 65W, four output channels, a universal input and screw terminals. These devices have a fanless design and are protected against overload (auto recovery), short circuit as well as overvoltage. They have long life capacitors (105°C) and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RQ-65B, RQ-65C and RQ-65D.

  • quad output
  • output: 62,5 to 68W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 50A
  • leakage current: <2mA
  • output voltage adjustment: 4,75 to 5,5V
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 440g

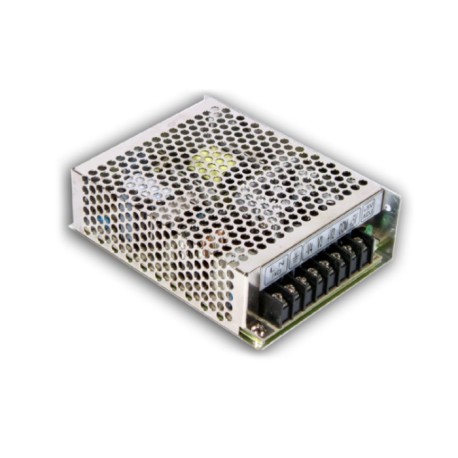

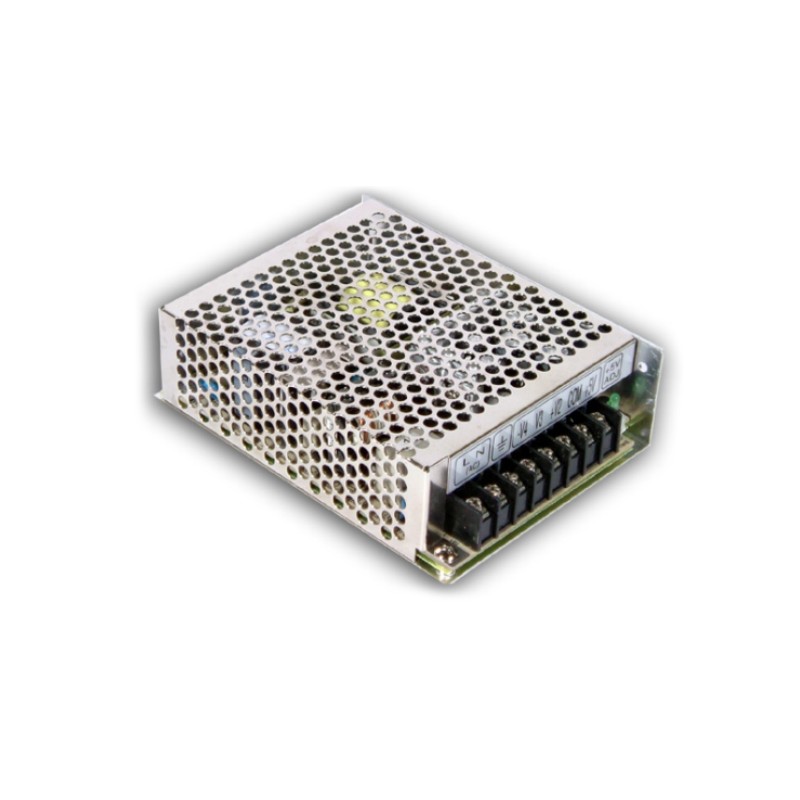

RQ-65B, Mean Well switching power supplies, 65W, quad output, RQ-65 series

RQ-65B

244435 RQ-65B RQ-65B 4711287434407 Mean Well power supply series RQ-65. Switching power supplies in an enclosed housing with 65W, four output channels, a universal input and screw terminals. These devices have a fanless design and are protected against overload (auto recovery), short circuit as well as overvoltage. They have long life capacitors (105°C) and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RQ-65B, RQ-65C and RQ-65D. quad output output: 62,5 to 68W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 50A leakage current: &lt;2mA output voltage adjustment: 4,75 to 5,5V overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 440g

Specifications

manufacturer
Manufacturer's name RQ-65B
GTIN 4711287434407
Output voltage [V] 5/12/-5/-12
Efficiency [%] 75
Output current [A] 8/3/1/1
Output voltage tolerance: [%] 2/9,-5/5/5
Output power [W] 62,5
Ripple [mVp-p] 80/120/80/80
Data Sheet

Unit price

24,19 €

Stock: 0
Further delivery:
CW 35/2024
