RQB150W3-110S54

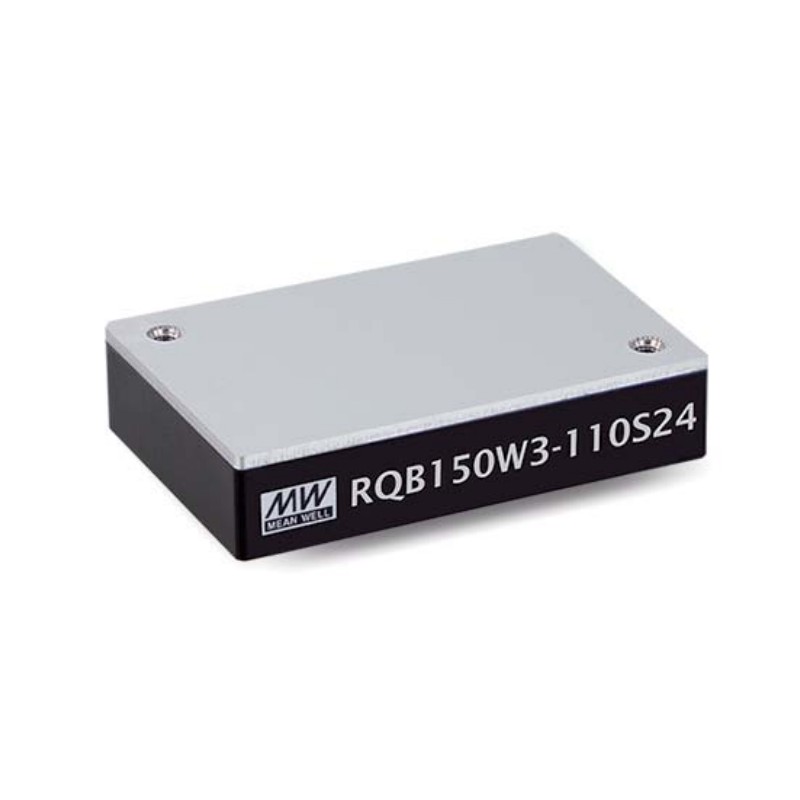

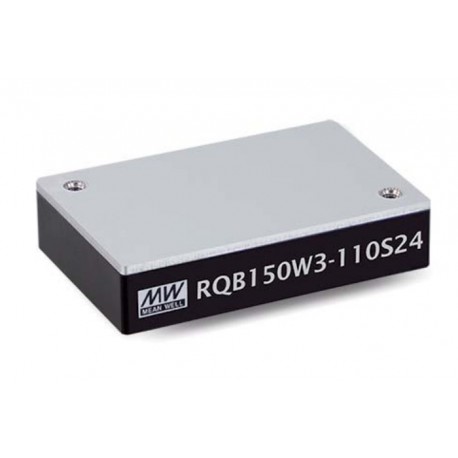

Mean Well DC/DC converter series RQB150W3

DC/DC converter modules in a Quarter Brick housing (2,28"x1,45"x0,5) with 150W, a remote ON/OFF control and an input voltage ratio of 3:1. These devices have a trimming output (±10%), do not require a minimum load and are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for PCB mounting and comply with EN55032 class A / B as well as EN50155 (railway). We offer the following types of this Mean Well series: RQB150W3-110S12, RQB150W3-110S24, RQB150W3-110S48 and RQB150W3-110S54.

  • single output
  • output: 150W
  • overload protection: 120 to 200%
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 70g
RQB150W3-110S54, Mean Well DC/DC converters, 150W, EN 50155 railway certificate, Quarter Brick housing, RQB150W3 series

RQB150W3-110S54

242675 RQB150W3-110S54 RQB150W3-110S54 4711287487151 Mean Well DC/DC converter series RQB150W3. DC/DC converter modules in a Quarter Brick housing (2,28"x1,45"x0,5) with 150W, a remote ON/OFF control and an input voltage ratio of 3:1. These devices have a trimming output (±10%), do not require a minimum load and are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for PCB mounting and comply with EN55032 class A / B as well as EN50155 (railway). We offer the following types of this Mean Well series: RQB150W3-110S12, RQB150W3-110S24, RQB150W3-110S48 and RQB150W3-110S54. single output output: 150W overload protection: 120 to 200% withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 70g

Specifications

manufacturer
Manufacturer's name RQB150W3-110S54
GTIN 4711287487151
Output voltage [V] 54
Input voltage range [V] 60...160
Efficiency [%] 88
Output current range [A] 0...2,778
Ripple [mVp-p] 480
Data Sheet

Unit price

96,49 €

Volume discounts

Quantity Unit price
50 + 93,29 €

Stock: 11
Further delivery:
CW 36/2024
