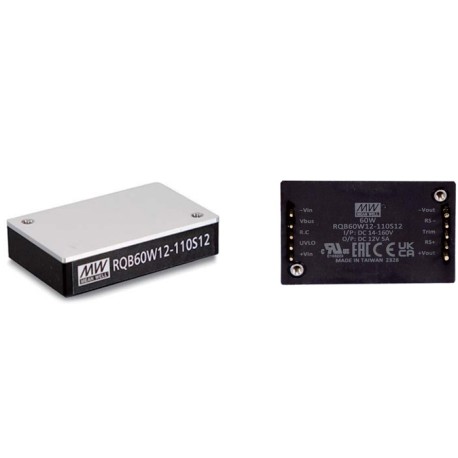

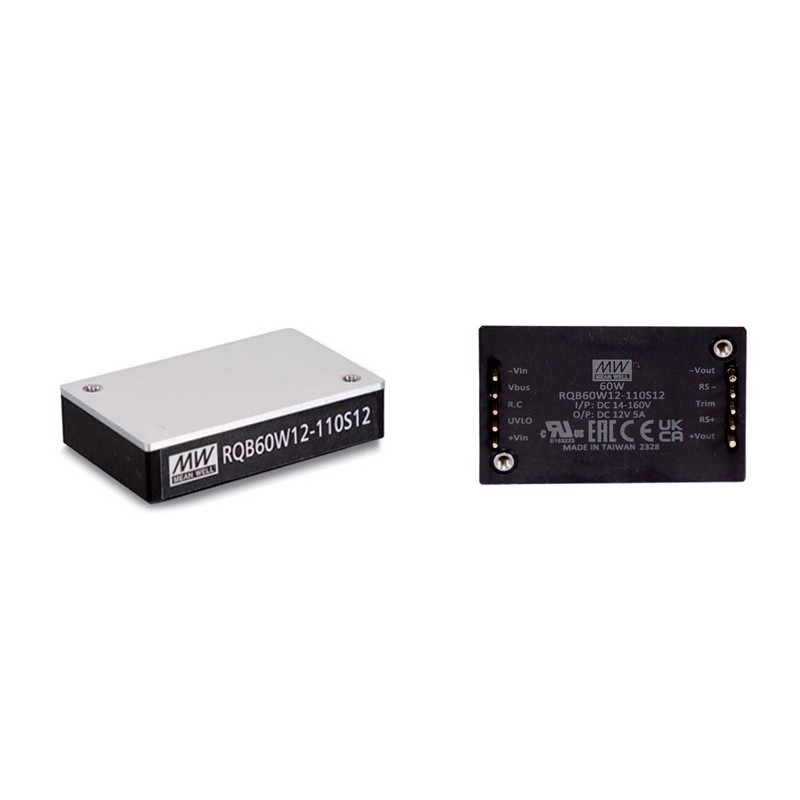

RQB60W12-110S12

Mean Well DC/DC converter series RQB60W12

DC/DC converter modules in a Quarter Brick housing with 60W, a remote ON/OFF control, an adjustable output voltage and a trimming output (±10%). These devices are suitable for railway applications as well as for PCB mounting and are protected against overload, overvoltage, overtemperature as well as short circuit. They do not require a minimum load and comply with EN62368-1, EN50155, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RQB60W12-110S05, RQB60W12-110S12, RQB60W12-110S24, RQB60W12-110S48 and RQB60W12-110S54.

  • single output
  • output: 60W
  • output voltage tolerance: ±1%
  • withstand voltage: 3000V DC
  • connection type: THT
  • operating temperature: -40 to +90°C
  • dimensions: 57,9x36,8x12,7mm
  • weight: 68g
RQB60W12-110S12, Mean Well DC/DC converters, 60W, EN 50155 railway certificate, Quarter Brick housing, RQB60W12 series

RQB60W12-110S12

244420 RQB60W12-110S12 RQB60W12-110S12 Mean Well DC/DC converter series RQB60W12. DC/DC converter modules in a Quarter Brick housing with 60W, a remote ON/OFF control, an adjustable output voltage and a trimming output (±10%). These devices are suitable for railway applications as well as for PCB mounting and are protected against overload, overvoltage, overtemperature as well as short circuit. They do not require a minimum load and comply with EN62368-1, EN50155, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RQB60W12-110S05, RQB60W12-110S12, RQB60W12-110S24, RQB60W12-110S48 and RQB60W12-110S54. single output output: 60W output voltage tolerance: ±1% withstand voltage: 3000V DC connection type: THT operating temperature: -40 to +90°C dimensions: 57,9x36,8x12,7mm weight: 68g

Specifications

manufacturer
Manufacturer's name RQB60W12-110S12
Output voltage [V] 12
Input voltage range [V] 14...160
Efficiency [%] 90
Output current [A] 5
Ripple [mVp-p] 150
Data Sheet

Unit price

70,89 €

Volume discounts

Quantity Unit price
50 + 68,49 €

Stock: 4
Further delivery:
CW 36/2024
