> Power supplies>Power supplies>Switching power supplies, enclosed>Mean Well switching power supplies, 15000W, parallel function, RST-15K series>RST-15K-115

Manufacturers

RST-15K-115

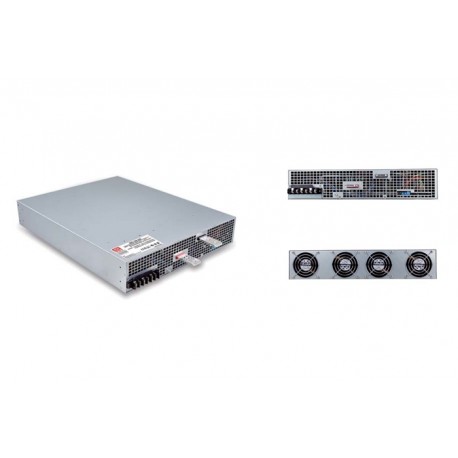

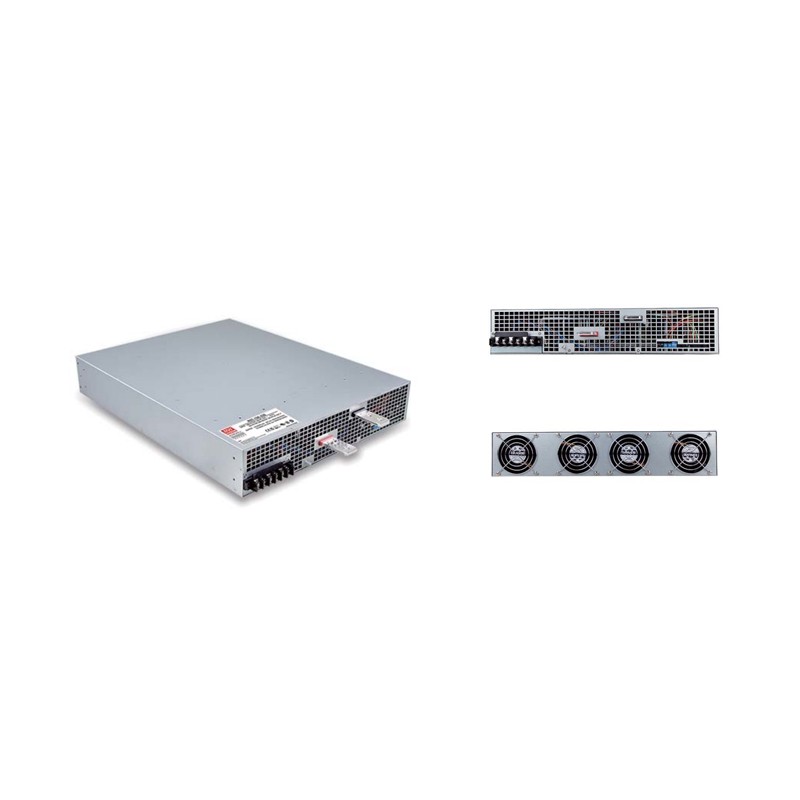

Mean Well power supply series RST-15K

Switching power supplies in an enclosed housing with 15.000W, a programmable output voltage, a 3-phase AC input, fans, a built-in remote ON/OFF control, screw terminals and an alarm signal. These devices have a built-in active PFC function and are protected against overload, fan fail, overtemperature, short circuit as well as overvoltage. They are suitable for an active current sharing of up to 2 units (max. 30kW) and comply with EN62368-1, EN55032 class A/B as well as EN55011 class A/B. We offer the following types of this Mean Well series: RST-15K-115, RST-15K-230 and RST-15K-380.

  • single output
  • output: 14.904 to 15.030W
  • input voltage: 196 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 150A
  • leakage current: <3,5mA
  • overload protection: 100 to 105%
  • withstand voltage I/P-O/P: 4300V AC
  • withstand voltage I/P-FG: 2800V AC
  • withstand voltage O/P-FG: 2800V AC
  • operating temperature: -30 to +70°C
  • dimensions: 540x424x83,5mm
  • weight: 25kg
RST-15K-115, Mean Well switching power supplies, 15000W, parallel function, RST-15K series

RST-15K-115

242180 RST-15K-115 RST-15K-115 4711287486734 Mean Well power supply series RST-15K. Switching power supplies in an enclosed housing with 15.000W, a programmable output voltage, a 3-phase AC input, fans, a built-in remote ON/OFF control, screw terminals and an alarm signal. These devices have a built-in active PFC function and are protected against overload, fan fail, overtemperature, short circuit as well as overvoltage. They are suitable for an active current sharing of up to 2 units (max. 30kW) and comply with EN62368-1, EN55032 class A/B as well as EN55011 class A/B. We offer the following types of this Mean Well series: RST-15K-115, RST-15K-230 and RST-15K-380. single output output: 14.904 to 15.030W input voltage: 196 to 305V AC (47 to 63Hz) maximal input inrush current: 150A leakage current: &lt;3,5mA overload protection: 100 to 105% withstand voltage I/P-O/P: 4300V AC withstand voltage I/P-FG: 2800V AC withstand voltage O/P-FG: 2800V AC operating temperature: -30 to +70°C dimensions: 540x424x83,5mm weight: 25kg

Specifications

manufacturer
Manufacturer's name RST-15K-115
GTIN 4711287486734
Output voltage [V] 115
Efficiency [%] 93,5
Output current range [A] 0...130
Output voltage tolerance: [%] ±1
Output power [W] 14950
Ripple [mVp-p] 1000
Data Sheet

Unit price

3.166,09 €

Stock: 9
Further delivery:
CW 05/2026
