RST-7K5-230

Mean Well power supply series RST-7K5

Switching power supplies in an enclosed housing with 7500W, a programable output voltagem forced air (RST-7K5_) / water cooling (RST-7K5-_L), a built-in remote ON/OFF control and a 3-phase AC input. These devices have a built-in active PFC function and are protected against overload, fan fail, overvoltage, overtemperature as well as short circuit. They have a parallel function (up to 4 units / max. 30kW) and comply with EN62368-1, EN55032 class A, EN55032 class B, EN55011 class A as well as EN55011 class B. We offer the following types of this Mean Well series: RST-7K5-115, RST-7K5-115L, RST-7K5-230, RST-7K5-230L, RST-7K5-380 and RST-7K5-380L.

  • single output
  • output: 7452 to 7515W
  • input voltage: 196 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 75A
  • leakage current: <3,5mA
  • overload protection: 100 to 105%
  • withstand voltage I/P-O/P: 4300V DC
  • withstand voltage I/P-FG: 2800V DC
  • withstand voltage O/P-FG: 2800V DC
  • operating temperature: -30 to +70°C

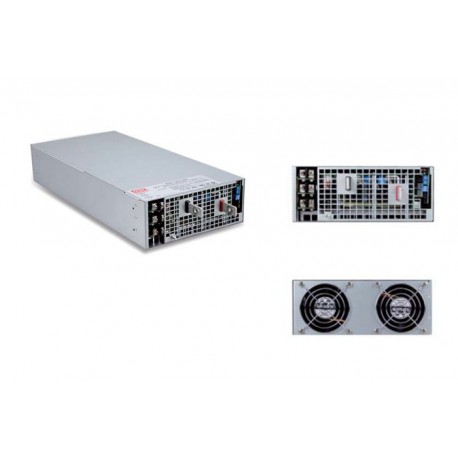

RST-7K5-230, Mean Well switching power supplies, 7500W, parallel function, RST-7K5 series

RST-7K5-230

242168 RST-7K5-230 RST-7K5-230 4711287486680 Mean Well power supply series RST-7K5. Switching power supplies in an enclosed housing with 7500W, a programable output voltagem forced air (RST-7K5_) / water cooling (RST-7K5-_L), a built-in remote ON/OFF control and a 3-phase AC input. These devices have a built-in active PFC function and are protected against overload, fan fail, overvoltage, overtemperature as well as short circuit. They have a parallel function (up to 4 units / max. 30kW) and comply with EN62368-1, EN55032 class A, EN55032 class B, EN55011 class A as well as EN55011 class B. We offer the following types of this Mean Well series: RST-7K5-115, RST-7K5-115L, RST-7K5-230, RST-7K5-230L, RST-7K5-380 and RST-7K5-380L. single output output: 7452 to 7515W input voltage: 196 to 305V AC (47 to 63Hz) maximal input inrush current: 75A leakage current: &lt;3,5mA overload protection: 100 to 105% withstand voltage I/P-O/P: 4300V DC withstand voltage I/P-FG: 2800V DC withstand voltage O/P-FG: 2800V DC operating temperature: -30 to +70°C

Specifications

manufacturer
Manufacturer's name RST-7K5-230
GTIN 4711287486680
Output voltage [V] 230
Efficiency [%] 94,5
Output current range [A] 0...34,5
Output voltage tolerance: [%] ±1
Output power [W] 7452
Ripple [mVp-p] 2000
Data Sheet

Unit price

1.835,89 €

Stock: 8
Further delivery:
CW 33/2024
