SCW12W8-12

Mean Well DC/DC converter series SCW12 and DCW12

DC/DC converters in a DIL24 housing with 12W, a regulated output voltage, a remote ON/OFF control, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class A. We offer various types of this Mean Well series.

  • single (SCW12_) or dual output (DCW12_)
  • output: 12W
  • overload protection: 110 to 180%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +71°C
  • weight: 18,5g

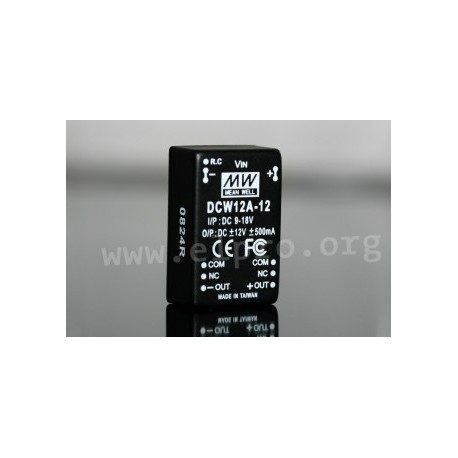

SCW12W8-12, Mean Well DC/DC converters, 12W, DIL 24 housing, SCW12 and DCW12 series

SCW12W8-12

255459 SCW12W8-12 SCW12W8-12 Mean Well DC/DC converter series SCW12 and DCW12. DC/DC converters in a DIL24 housing with 12W, a regulated output voltage, a remote ON/OFF control, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class A. We offer various types of this Mean Well series. single (SCW12_) or dual output (DCW12_) output: 12W overload protection: 110 to 180% withstand voltage: 1500V DC operating temperature: -40 to +71°C weight: 18,5g

Specifications

manufacturer
Manufacturer's name SCW12W8-12
Input [V DC] 9...75
Output [V] 12
Ripple [mV] 100

Unit price

16,39 €

Volume discounts

Quantity Unit price
50 + 15,29 €

Stock: 0
Next incoming goods:
CW 04/2026
15 units

Further delivery:
CW 09/2026
