SFTN01L-09N

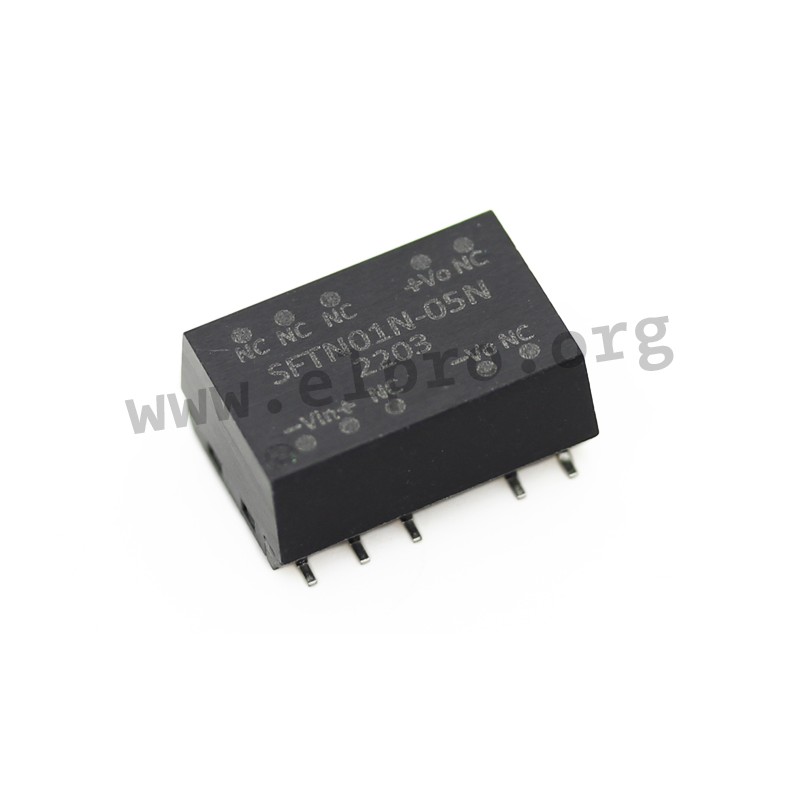

Mean Well DC/DC converter series SFTN01-N

Unregulated DC/DC converters in an SMD housing with 1W and an input voltage ratio of 1:1. These devices are suitable for direct PCB mounting and are protected against short circuit. They are inexpensive and comply with EN55032. We offer the following types of this Mean Well series: SFTN01L-05N, SFTN01L-09N, SFTN01L-12N, SFTN01L-15N, SFTN01M-05N, SFTN01M-09N, SFTN01M-12N, SFTN01M-15N, SFTN01N-05N, SFTN01N-09N, SFTN01N-12N and SFTN01N-15N.

  • single output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +100°C
  • weight: 1g

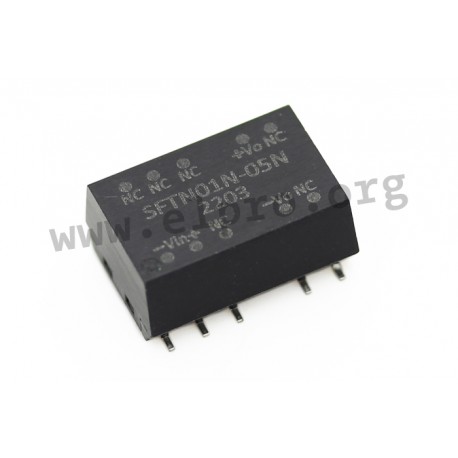

SFTN01L-09N, Mean Well DC/DC converters, 1W, SMD, SFTN01-N series

SFTN01L-09N

241341 SFTN01L-09N SFTN01L-09N 4711287474755 Mean Well DC/DC converter series SFTN01-N. Unregulated DC/DC converters in an SMD housing with 1W and an input voltage ratio of 1:1. These devices are suitable for direct PCB mounting and are protected against short circuit. They are inexpensive and comply with EN55032. We offer the following types of this Mean Well series: SFTN01L-05N, SFTN01L-09N, SFTN01L-12N, SFTN01L-15N, SFTN01M-05N, SFTN01M-09N, SFTN01M-12N, SFTN01M-15N, SFTN01N-05N, SFTN01N-09N, SFTN01N-12N and SFTN01N-15N. single output output: 1W output voltage tolerance: ±5% maximal ripple and noise: 100mVpp withstand voltage: 3000V DC operating temperature: -40 to +100°C weight: 1g

Specifications

manufacturer
Manufacturer's name SFTN01L-09N
GTIN 4711287474755
Output voltage [V] 9
Input voltage range [V] 4,5...5,5
Efficiency [%] 77
Output current [A] 0,111
Data Sheet

Unit price

4,19 €

Volume discounts

Quantity Unit price
50 + 3,79 €

Stock: 54
Further delivery:
CW 42/2024
