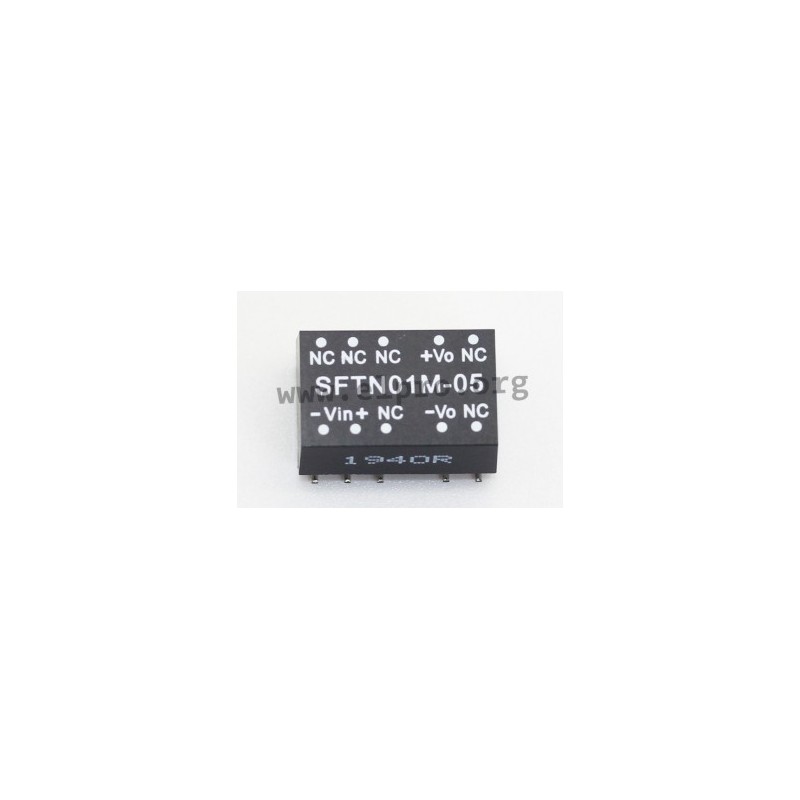

SFTN01L-12

Mean Well DC/DC converter series SFTN01

Unregulated DC/DC converters in an SMD housing with 1W. These low-cost devices are suitable for direct PCB mounting and are protected against short circuit. They have a high efficiency and comply with EN55032 class B. We offer the following types of this Mean Well series: SFTN01L-05, SFTN01L-12, SFTN01L-15, SFTN01M-05, SFTN01M-12, SFTN01M-15, SFTN01N-05, SFTN01N-12 and SFTN01N-15.

  • single output
  • output: 1W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 1,2g

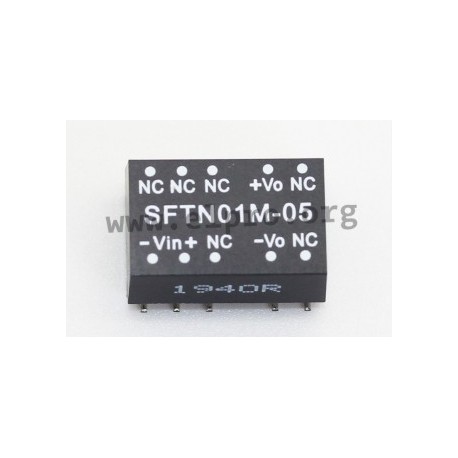

SFTN01L-12, Mean Well DC/DC converters, 1W, SMD, SFTN01 series

SFTN01L-12

110311 SFTN01L-12 SFTN01L-12 4711287474649 Mean Well DC/DC converter series SFTN01. Unregulated DC/DC converters in an SMD housing with 1W. These low-cost devices are suitable for direct PCB mounting and are protected against short circuit. They have a high efficiency and comply with EN55032 class B. We offer the following types of this Mean Well series: SFTN01L-05, SFTN01L-12, SFTN01L-15, SFTN01M-05, SFTN01M-12, SFTN01M-15, SFTN01N-05, SFTN01N-12 and SFTN01N-15. single output output: 1W output voltage tolerance: ±2% maximal ripple and noise: 75mVpp withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 1,2g

Specifications

manufacturer
Manufacturer's name SFTN01L-12
GTIN 4711287474649
Input voltage [V] 4,5...5,5
Output voltage [V] 12
Output current range [mA] 8,4...84
Efficiency [%] 80
Data Sheet

Unit price

4,89 €

Volume discounts

Quantity Unit price
50 + 4,39 €

Stock: 65
Further delivery:
CW 40/2024
