SFTN02L-05SC

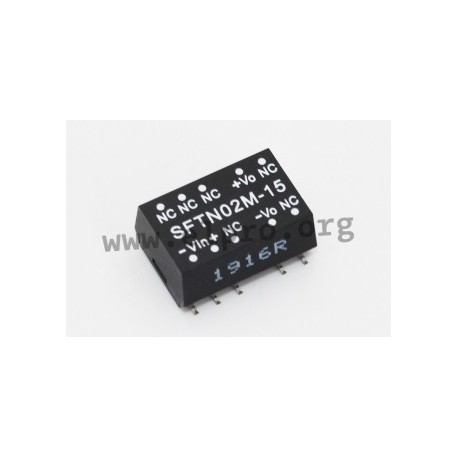

Mean Well DC/DC converter series SFTN02

Unregulated DC/DC converters in an SMD housing with 2W and a high efficiency (up to 82%). These devices are suitable for direct PCB mounting and are protected against short circuit. They are reasonably priced and comply with EN55032 class A, EN61000-4-2 as well as EN61000-4-3. We offer various types of this Mean Well series.

  • single output
  • output: 2W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +100°C
  • weight: 1,2g
SFTN02L-05SC, Mean Well DC/DC converters, 2W, SMD, SFTN02 series

SFTN02L-05SC

255422 SFTN02L-05SC SFTN02L-05SC Mean Well DC/DC converter series SFTN02. Unregulated DC/DC converters in an SMD housing with 2W and a high efficiency (up to 82%). These devices are suitable for direct PCB mounting and are protected against short circuit. They are reasonably priced and comply with EN55032 class A, EN61000-4-2 as well as EN61000-4-3. We offer various types of this Mean Well series. single output output: 2W output voltage tolerance: ±2% maximal ripple and noise: 75mVpp withstand voltage: 3000V DC operating temperature: -40 to +100°C weight: 1,2g

Specifications

manufacturer
Manufacturer's name SFTN02L-05SC
Input voltage [V] 4,5...5,5
Output voltage [V] 5
Efficiency [%] 78
Data Sheet

Unit price

4,39 €

Stock: 0
Further delivery:
CW 12/2026

Minimum order quantity 200 units or
multiples of 200.
