SHP-30K-400CP

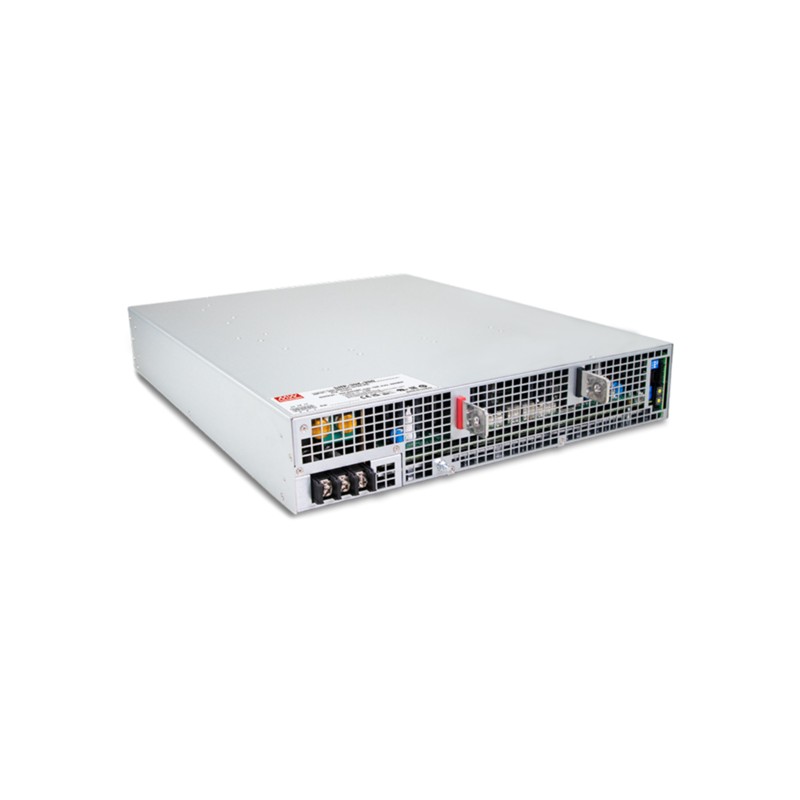

Mean Well switching power supplies series SHP-30K-400CP

Switching power supplies in a enclosed housing with 30kW, a 3-phase input, AC-OK / DC-OK signal and fans. These devices are protected against overrload, overvoltage, fan fail, overtemperature as well as short circuit and have built-in CAN bus interfaces. We offer the SHP-30K-400CP type of this Mean Well series.

  • single output
  • output power: 30000W
  • input voltage: 340 to 530V AC (47 to 63Hz)
  • input current: 39A
  • operating temperature: -30 to +70°C
  • dimensions: 540x424x83,5mm
  • weight: 23,4kg

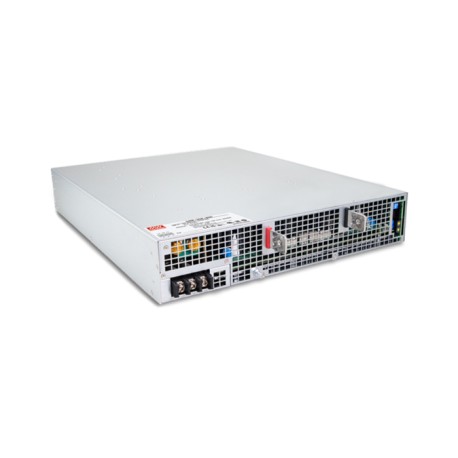

SHP-30K-400CP, Mean Well switching power supplies, 30000W, parallel function, SHP-30K-400CP series

SHP-30K-400CP

255310 SHP-30K-400CP SHP-30K-400CP Mean Well switching power supplies series SHP-30K-400CP. Switching power supplies in a enclosed housing with 30kW, a 3-phase input, AC-OK / DC-OK signal and fans. These devices are protected against overrload, overvoltage, fan fail, overtemperature as well as short circuit and have built-in CAN bus interfaces. We offer the SHP-30K-400CP type of this Mean Well series. single output output power: 30000W input voltage: 340 to 530V AC (47 to 63Hz) input current: 39A operating temperature: -30 to +70°C dimensions: 540x424x83,5mm weight: 23,4kg

Specifications

manufacturer
Manufacturer's name SHP-30K-400CP

Unit price

6.111,19 €

Stock: 0
Further delivery:
CW 12/2026
