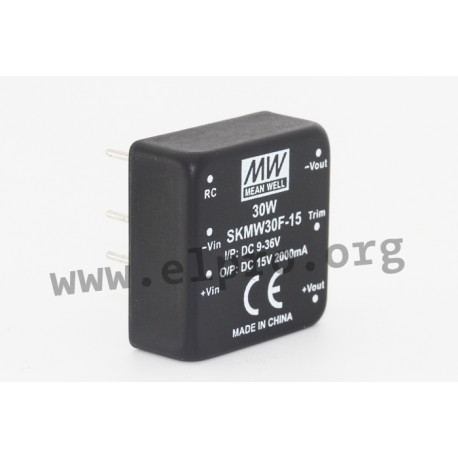

SKMW30F-15

Mean Well DC/DC converter series SKMW30

DC/DC converters in a 1"x1" DIL housing with 30W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices require no minimum load, have an input voltage ratio of 4:1 and are protected against overload, input undervoltage, overtemperature, overvoltage as well as short circuit (continuous). They are suitable for PCB mounting and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: SKMW30F-03, SKMW30F-05, SKMW30F-12, SKMW30F-15, SKMW30G-03, SKMW30G-05, SKMW30G-12 and SKMW30G-15.

  • single output
  • output: 25 to 30W
  • output voltage tolerance: ±1,5%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 18g
SKMW30F-15

SKMW30F-15

110464 SKMW30F-15 SKMW30F-15 4711287477305 Mean Well DC/DC converter series SKMW30. DC/DC converters in a 1"x1" DIL housing with 30W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices require no minimum load, have an input voltage ratio of 4:1 and are protected against overload, input undervoltage, overtemperature, overvoltage as well as short circuit (continuous). They are suitable for PCB mounting and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: SKMW30F-03, SKMW30F-05, SKMW30F-12, SKMW30F-15, SKMW30G-03, SKMW30G-05, SKMW30G-12 and SKMW30G-15. single output output: 25 to 30W output voltage tolerance: ±1,5% withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 18g

Specifications

manufacturer
Manufacturer's name SKMW30F-15
GTIN 4711287477305
Input voltage [V] 9...36
Output voltage [V] 15
Output current range [mA] 0...2000
Efficiency [%] 89
Data Sheet

Unit price

31,29 €

Volume discounts

Quantity Unit price
50 + 29,09 €

Stock: 33
Further delivery:
CW 09/2026
