SLD-50-56

Mean Well LED driver series SLD-50

LED drivers in a plastic housing with a constant current/voltage (SLD-50-12/-24), 50W or a constant power (SLD-50-56). These devices comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C as well as EN55015 and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the follwing types of this Mean Well series: SLD-50-12, SLD-50-24 and SLD-50-56.

  • single output
  • output: 50,4W
  • input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC
  • maximal input inrush current: 50A
  • overcurrent protection (SLD-50-12/24): 95 to 108%
  • overload protection (SLD-50-56): 110 to 150%
  • withstand voltage (I/P-O/P): 3750V AC
  • operating temperature: -20 to +90°C
  • dimensions: 280x30x16,8mm
  • weight: 175g

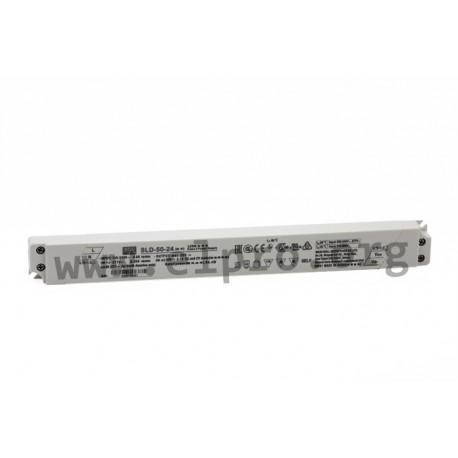

SLD-50-56, Mean Well LED switching power supplies, 50W, CV and CC mixed mode, constant power, SLD-50 series

SLD-50-56

123081 SLD-50-56 SLD-50-56 4711287445564 Mean Well LED driver series SLD-50. LED drivers in a plastic housing with a constant current/voltage (SLD-50-12/-24), 50W or a constant power (SLD-50-56). These devices comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C as well as EN55015 and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the follwing types of this Mean Well series: SLD-50-12, SLD-50-24 and SLD-50-56. single output output: 50,4W input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC maximal input inrush current: 50A overcurrent protection (SLD-50-12/24): 95 to 108% overload protection (SLD-50-56): 110 to 150% withstand voltage (I/P-O/P): 3750V AC operating temperature: -20 to +90°C dimensions: 280x30x16,8mm weight: 175g

Specifications

manufacturer
Manufacturer's name SLD-50-56
GTIN 4711287445564
Efficiency [%] 90
Output current [A] 1,05
Output voltage tolerance: [%] 5
Output power [W] 50,4
Ripple [mVp-p] 52,5
Output voltage range [V] 30...56
Data Sheet

Unit price

16,89 €

Volume discounts

Quantity Unit price
50 + 15,69 €

Stock: 41
Further delivery:
CW 32/2024
