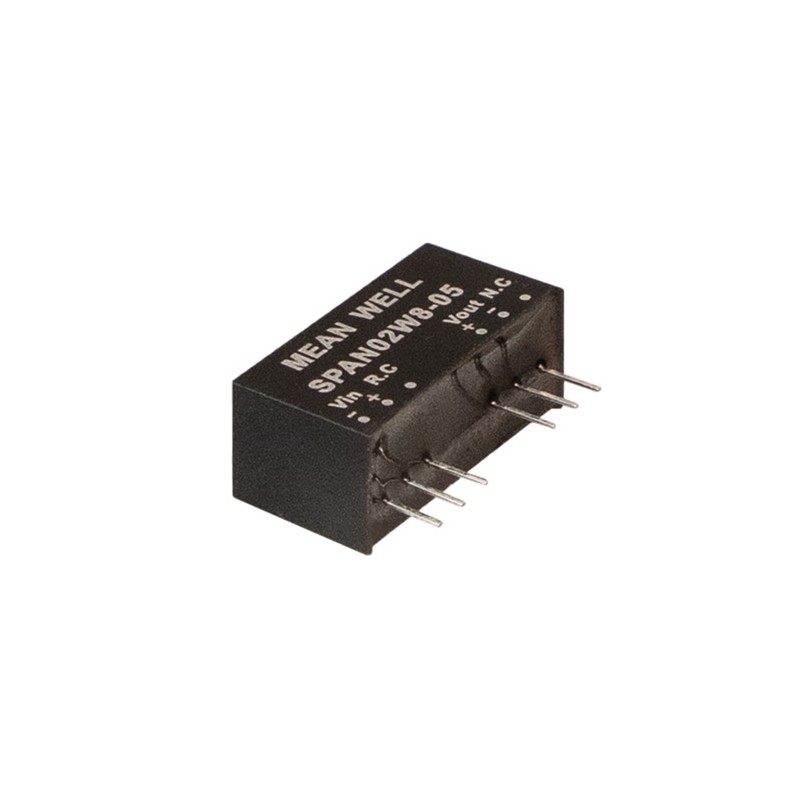

SPAN02W8-05

Mean Well DC/DC converters series SPAN02W8 and DPAN02W8

Regulated DC/DC converters in a SIP8 housing with 2W, as well as they are protected against overload and short circuit. These devices have a remote function and they are available in a type with single output (SPAN02W8-_) or with dual output (DPAN02W8-_). We offer the following types of this Mean Well series: SPAN02W8-03, SPAN02W8-05, SPAN02W8-12, SPAN02W8-15, DPAN02W8-05, DPAN02W8-12, and DPAN02W8-15.

  • output: 2W
  • output voltage tolerance: ±1,5%
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +95°C
  • dimensions: 21,8x9,2x11,1mm
  • weight: 4,8g

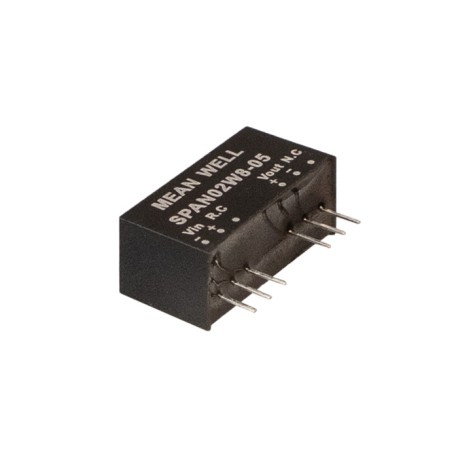

SPAN02W8-05, Mean Well DC/DC converters, 2W, SIP8 housing, SPAN02W8 and DPAN02W8 series

SPAN02W8-05

252737 SPAN02W8-05 SPAN02W8-05 Mean Well DC/DC converters series SPAN02W8 and DPAN02W8. Regulated DC/DC converters in a SIP8 housing with 2W, as well as they are protected against overload and short circuit. These devices have a remote function and they are available in a type with single output (SPAN02W8-_) or with dual output (DPAN02W8-_). We offer the following types of this Mean Well series: SPAN02W8-03, SPAN02W8-05, SPAN02W8-12, SPAN02W8-15, DPAN02W8-05, DPAN02W8-12, and DPAN02W8-15. output: 2W output voltage tolerance: ±1,5% withstand voltage: 3000V DC operating temperature: -40 to +95°C dimensions: 21,8x9,2x11,1mm weight: 4,8g

Specifications

manufacturer
Manufacturer's name SPAN02W8-05
Output voltage [V] 5
Input voltage range [V] 9...75
Efficiency [%] 80
Output current [A] 0,4
Output power [W] 2
Data Sheet

Unit price

6,89 €

Volume discounts

Quantity Unit price
50 + 6,39 €

Stock: 28
Further delivery:
CW 05/2026
