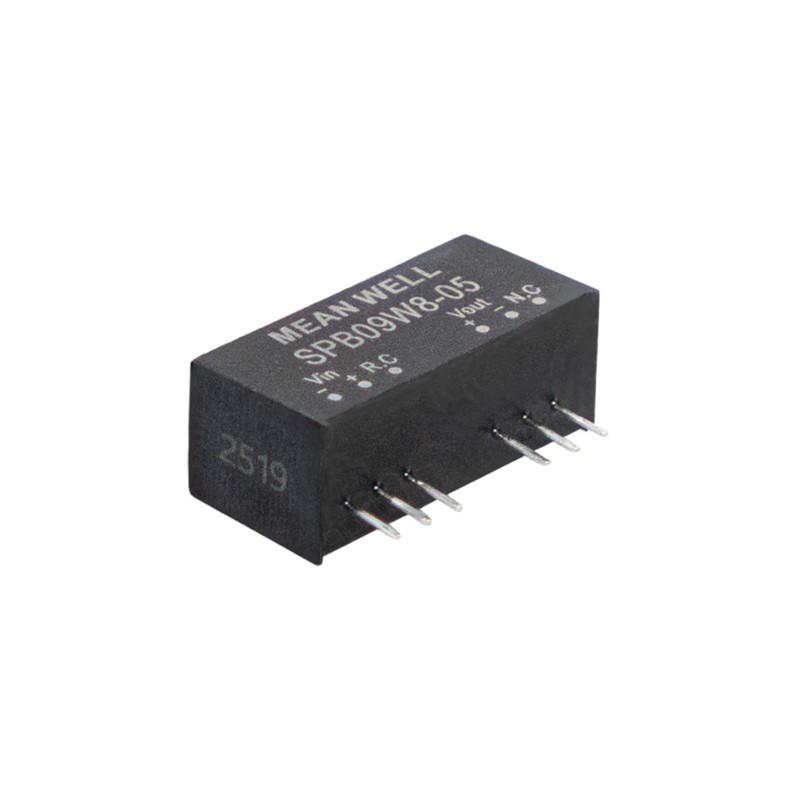

SPB09W8-24

Mean Well DC/DC converters series SPB09W8 and DPB09W8

Regulated DC/DC converters in a SIP8 housing with 9W, as well as they are protected against overload and short circuit. These devices have a remote function and they are available in a type with single output (SPB09W8-_) or with dual output (DPB09W8-_). We offer various types of this Mean Well series.

  • output: 9W
  • output voltage tolerance: ±1,5%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • dimensions: 24x9,6x11,2mm
  • weight: 5g

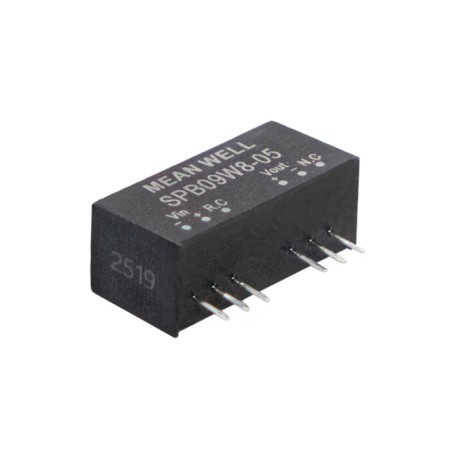

SPB09W8-24, Mean Well DC/DC converters, 9W, SIP8 housing, SPB09W8 and DPB09W8 series

SPB09W8-24

252762 SPB09W8-24 SPB09W8-24 Mean Well DC/DC converters series SPB09W8 and DPB09W8. Regulated DC/DC converters in a SIP8 housing with 9W, as well as they are protected against overload and short circuit. These devices have a remote function and they are available in a type with single output (SPB09W8-_) or with dual output (DPB09W8-_). We offer various types of this Mean Well series. output: 9W output voltage tolerance: ±1,5% withstand voltage: 1500V DC operating temperature: -40 to +90°C dimensions: 24x9,6x11,2mm weight: 5g

Specifications

manufacturer
Manufacturer's name SPB09W8-24
Output voltage [V] 24
Input voltage range [V] 9...75
Efficiency [%] 87
Output current [A] 0,375
Output power [W] 9
Data Sheet

Unit price

13,29 €

Volume discounts

Quantity Unit price
50 + 12,39 €

Stock: 42
Further delivery:
CW 05/2026
