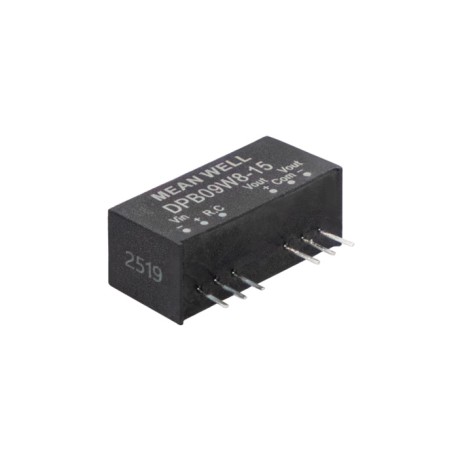

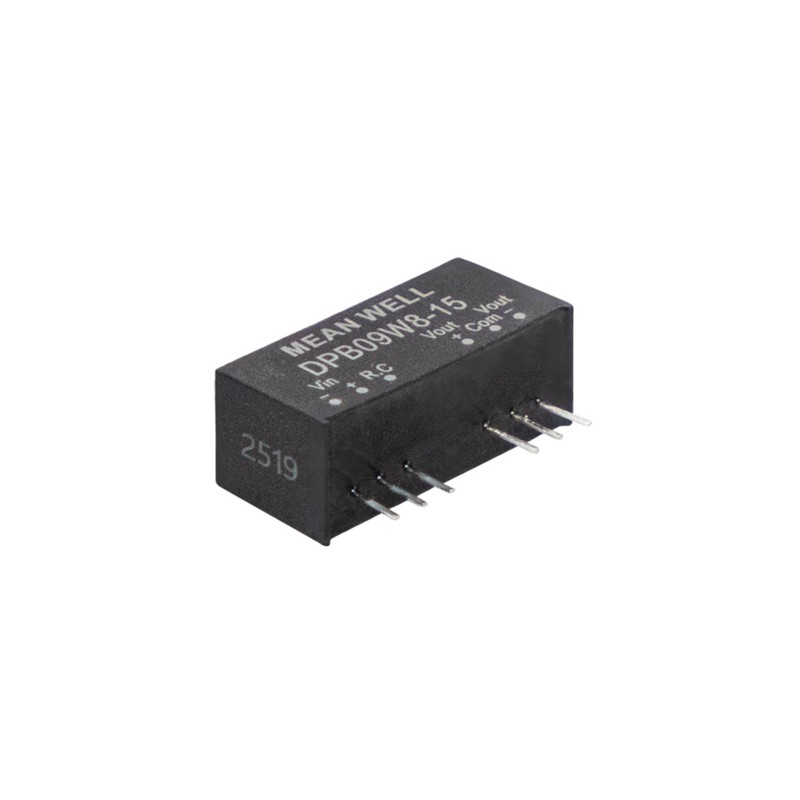

DPB09W8-15

Mean Well DC/DC converters series SPB09W8 and DPB09W8

Regulated DC/DC converters in a SIP8 housing with 9W, as well as they are protected against overload and short circuit. These devices have a remote function and they are available in a type with single output (SPB09W8-_) or with dual output (DPB09W8-_). We offer various types of this Mean Well series.

  • output: 9W
  • output voltage tolerance: ±1,5%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • dimensions: 24x9,6x11,2mm
  • weight: 5g
DPB09W8-15, Mean Well DC/DC converters, 9W, SIP8 housing, SPB09W8 and DPB09W8 series

DPB09W8-15

252765 DPB09W8-15 DPB09W8-15 Mean Well DC/DC converters series SPB09W8 and DPB09W8. Regulated DC/DC converters in a SIP8 housing with 9W, as well as they are protected against overload and short circuit. These devices have a remote function and they are available in a type with single output (SPB09W8-_) or with dual output (DPB09W8-_). We offer various types of this Mean Well series. output: 9W output voltage tolerance: ±1,5% withstand voltage: 1500V DC operating temperature: -40 to +90°C dimensions: 24x9,6x11,2mm weight: 5g

Specifications

manufacturer
Manufacturer's name DPB09W8-15
Output voltage [V] ±15
Input voltage range [V] 9...75
Efficiency [%] 86
Output current [A] ±0,3
Output power [W] 9
Data Sheet

Unit price

13,29 €

Volume discounts

Quantity Unit price
50 + 12,39 €

Stock: 21
Further delivery:
CW 05/2026
