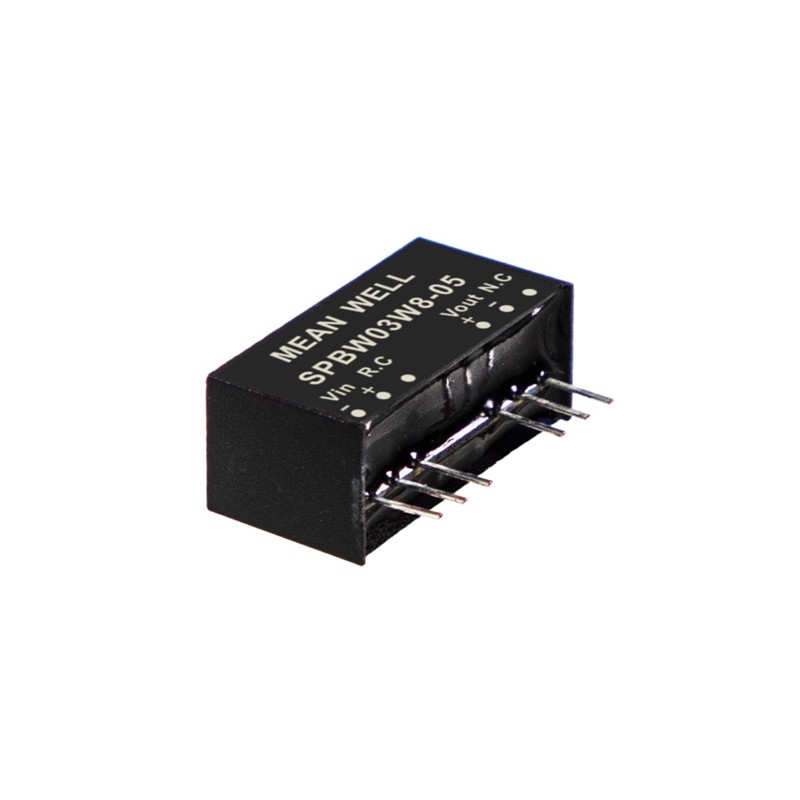

SPBW03W8-05

Mean Well DC/DC converters series SPBW03W8 and DPBW03W8

Regulated DC/DC converters in a SIP8 housing with 3W, as well as they are protected against overload and short circuit. These devices have a remote function, and they are available in a type with single output (SPBW03W8-_) or with dual output (DPBW03W8-_). We offer the following types of this Mean Well series: SPBW03W8-03, SPBW03W8-05, SPBW03W8-12, SPBW03W8-15, DPBW03W8-05, DPBW03W8-12, and DPBW03W8-15.

  • output: 3W
  • output voltage tolerance: ±1,5%
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • dimensions: 21,8x9,2x11,1mm
  • weight: 4,8g
SPBW03W8-05, Mean Well DC/DC converters, 3W, SIP8 housing, SPBW03W8 and DPBW03W8 series

SPBW03W8-05

252744 SPBW03W8-05 SPBW03W8-05 Mean Well DC/DC converters series SPBW03W8 and DPBW03W8. Regulated DC/DC converters in a SIP8 housing with 3W, as well as they are protected against overload and short circuit. These devices have a remote function, and they are available in a type with single output (SPBW03W8-_) or with dual output (DPBW03W8-_). We offer the following types of this Mean Well series: SPBW03W8-03, SPBW03W8-05, SPBW03W8-12, SPBW03W8-15, DPBW03W8-05, DPBW03W8-12, and DPBW03W8-15. output: 3W output voltage tolerance: ±1,5% withstand voltage: 3000V DC operating temperature: -40 to +90°C dimensions: 21,8x9,2x11,1mm weight: 4,8g

Specifications

manufacturer
Manufacturer's name SPBW03W8-05
Output voltage [V] 5
Input voltage range [V] 9...75
Efficiency [%] 81
Output current [A] 0,6
Output power [W] 3
Data Sheet

Unit price

8,19 €

Volume discounts

Quantity Unit price
50 + 7,59 €

Stock: 28
Further delivery:
CW 05/2026
