SPBW06F-12

Mean Well DC/DC converter series SPBW06

DC/DC converters in a SIL8 housing with 6W, a regulated output voltage, an input voltage ratio of 4:1 and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum minimum load and comply with EN55032. We offer the following types of this Mean Well series: SPBW06F-03, SPBW06F-05, SPBW06F-12, SPBW06F-15, SPBW06G-03, SPBW06G-05, SPBW06G-12 and SPBW06G-15.

  • single output
  • output: 6W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 4,8g

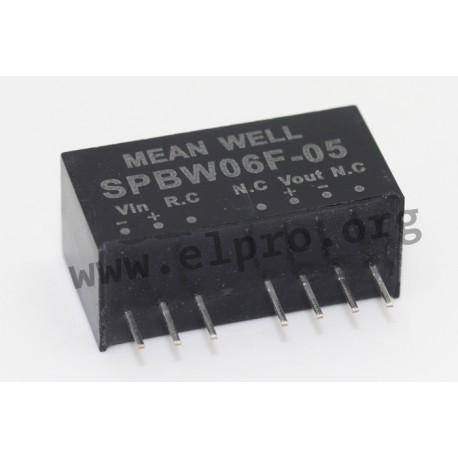

Mean Well SPBW06 series

SPBW06F-12

110431 SPBW06F-12 SPBW06F-12 4711287478883 Mean Well DC/DC converter series SPBW06. DC/DC converters in a SIL8 housing with 6W, a regulated output voltage, an input voltage ratio of 4:1 and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum minimum load and comply with EN55032. We offer the following types of this Mean Well series: SPBW06F-03, SPBW06F-05, SPBW06F-12, SPBW06F-15, SPBW06G-03, SPBW06G-05, SPBW06G-12 and SPBW06G-15. single output output: 6W output voltage tolerance: ±1,5% maximal ripple and noise: 100mVpp withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 4,8g

Specifications

manufacturer
Manufacturer's name SPBW06F-12
GTIN 4711287478883
Input voltage [V] 9...36
Output voltage [V] 12
Output current range [mA] 0...500
Efficiency [%] 88
Data Sheet

Unit price

8,59 €

Volume discounts

Quantity Unit price
50 + 7,99 €

Stock: 48
Next incoming goods:
CW 30/2024
210 units

Further delivery:
CW 40/2024
