SPD-20HP-277S

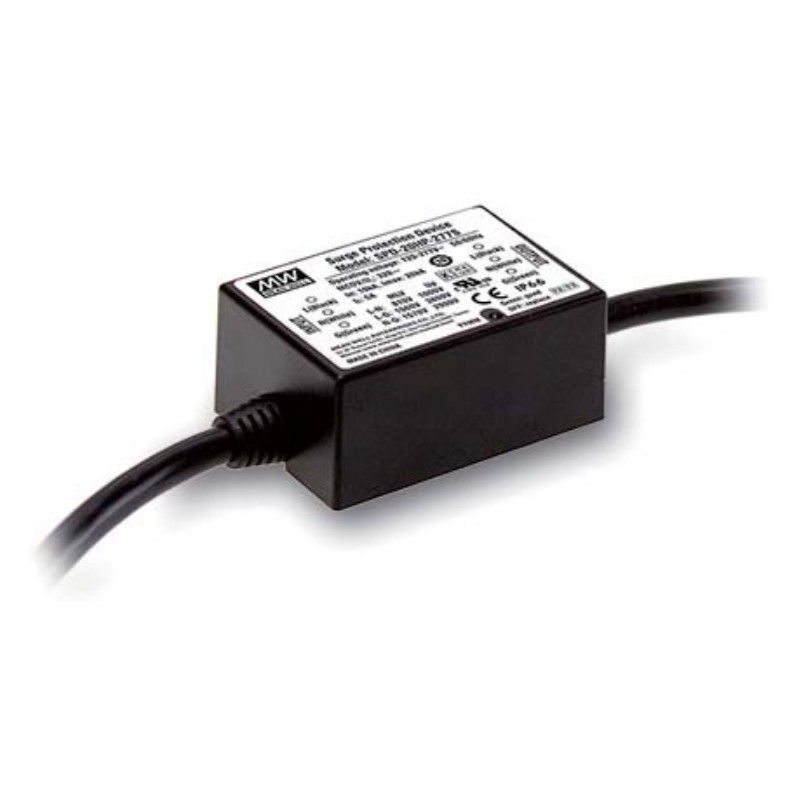

Mean Well surge protection device series SPD-20HP

Type 2+3 surge protectors (SPD) in a compact plastic housing (IP66) with an LED status display for protection class I equipment. These devices are particularly suitable for final circuits (e.g. LED lighting) and are protected against overvoltages as well as earth-bound potential increases. They comply with UL1449 (fourth edition) as well as EN/IEC 61643-11 (SPD-20HP-277S) and should be mounted as close as possible to the protective device. We offer the following types of this Mean Well series: SPD-20HP-277S and SPD-20HP-480S.

  • operating voltage SPD_-277S: 120 to 277V AC (50/60Hz)
  • operating voltage SPD_-480S: 347 to 480V AC (50/60Hz)
  • maximal continous current: 5A
  • protected phases: 1
  • maximal leakage current: 20kA
  • operating temperature: -40 to +75°C
SPD-20HP-277S, Mean Well AC surge protection SPD, IP66, SPD-20HP series

SPD-20HP-277S

123897 SPD-20HP-277S SPD-20HP-277S 4711287464091 Mean Well surge protection device series SPD-20HP. Type 2+3 surge protectors (SPD) in a compact plastic housing (IP66) with an LED status display for protection class I equipment. These devices are particularly suitable for final circuits (e.g. LED lighting) and are protected against overvoltages as well as earth-bound potential increases. They comply with UL1449 (fourth edition) as well as EN/IEC 61643-11 (SPD-20HP-277S) and should be mounted as close as possible to the protective device. We offer the following types of this Mean Well series: SPD-20HP-277S and SPD-20HP-480S. operating voltage SPD_-277S: 120 to 277V AC (50/60Hz) operating voltage SPD_-480S: 347 to 480V AC (50/60Hz) maximal continous current: 5A protected phases: 1 maximal leakage current: 20kA operating temperature: -40 to +75°C

Specifications

manufacturer
Manufacturer's name SPD-20HP-277S
GTIN 4711287464091
Data Sheet

Unit price

23,39 €

Volume discounts

Quantity Unit price
50 + 22,09 €

Stock: 22
Further delivery:
CW 16/2026
