SPOL-01

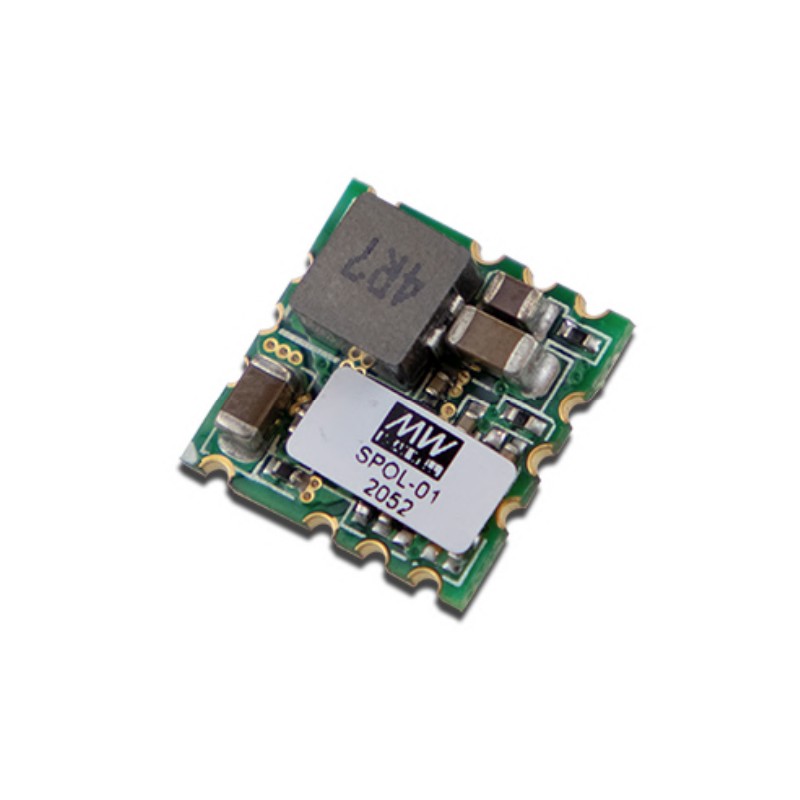

Mean Well DC/DC converter series SPOL-01

DC/DC switching regulators in an SMD housing (open frame) with 1A and a remote ON/OFF control. These devices are protected against short circuit and comply with EN62368-1 as well as EN55032 class A. They are suitable for direct PCB mounting (LGA footprint) and have an input voltage range of 3 to 14VDC. We offer the type SPOL-01 of this Mean Well series.

  • single output
  • output current: 1A
  • ripple and noise: 40mVpp
  • operating temperature: -40 to +82°C
  • dimensions: 12,4x12,4x4mm
  • weight: 1g

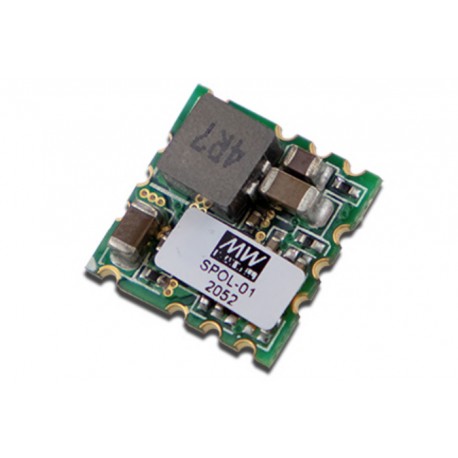

SPOL-01, Mean Well DC/DC switching regulators, 1A, SMD, SPOL-01 series

SPOL-01

242233 SPOL-01 SPOL-01 4711287486642 Mean Well DC/DC converter series SPOL-01. DC/DC switching regulators in an SMD housing (open frame) with 1A and a remote ON/OFF control. These devices are protected against short circuit and comply with EN62368-1 as well as EN55032 class A. They are suitable for direct PCB mounting (LGA footprint) and have an input voltage range of 3 to 14VDC. We offer the type SPOL-01 of this Mean Well series.  single output output current: 1A ripple and noise: 40mVpp operating temperature: -40 to +82°C dimensions: 12,4x12,4x4mm weight: 1g

Specifications

manufacturer
Manufacturer's name SPOL-01
GTIN 4711287486642
Input voltage range [V] 3...14
Efficiency [%] 90
Output current [A] 1
Output voltage range [V] 0,9...5,5
Data Sheet

Unit price

3,39 €

Stock: 0
Further delivery:
CW 44/2024

Minimum order quantity 650 units or
multiples of 650.
