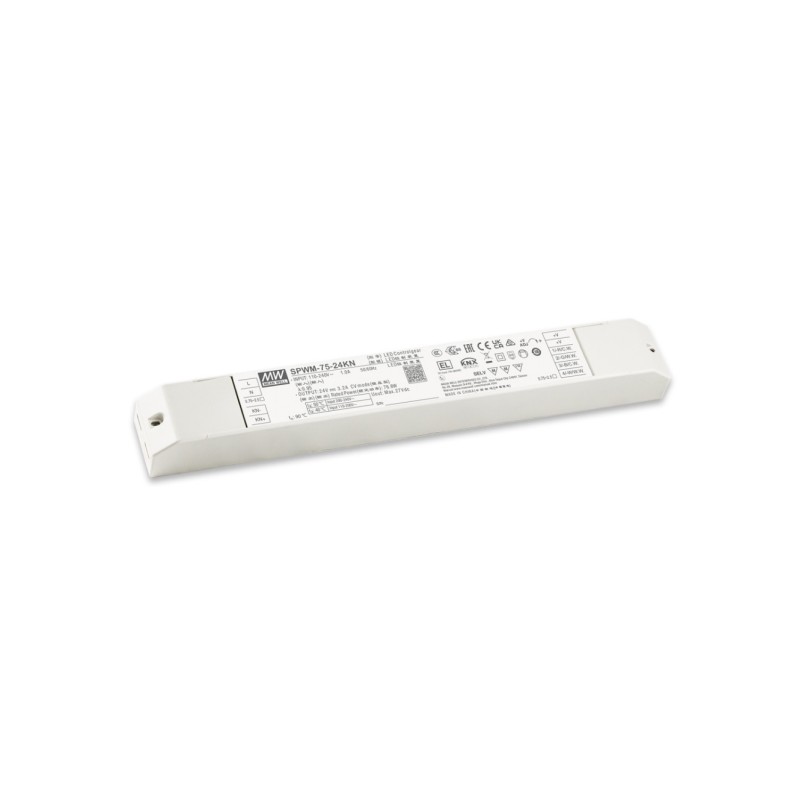

SPWM-75-12KN

Mean Well LED drivers series SPWM-75-KN

LED drivers in a plastic housing universal input, one output channels, a KNX style output, and 75W. We offer the following types of this Mean Well series: SPWM-75-12KN and SPWM-75-24KN.

  • output: 75,6 to 76,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 156 to 410V DC
  • maximal inrush current: 50A
  • operating temperature: -20 to +90°C
  • dimensions: 290x38x28,5mm
  • weight: 280g
SPWM-75-12KN, Mean Well LED drivers, 75W, SPWM-75-KN series

SPWM-75-12KN

264611 SPWM-75-12KN SPWM-75-12KN Mean Well LED drivers series SPWM-75-KN. LED drivers in a plastic housing universal input, one output channels, a KNX style output, and 75W. We offer the following types of this Mean Well series: SPWM-75-12KN and SPWM-75-24KN. output: 75,6 to 76,8W input voltage: 100 to 305V AC (47 to 63Hz), 156 to 410V DC maximal inrush current: 50A operating temperature: -20 to +90°C dimensions: 290x38x28,5mm weight: 280g

Specifications

manufacturer
Manufacturer's name SPWM-75-12KN
Output voltage [V] 12
Efficiency [%] 89
Output current [A] 6,3
Data Sheet

Unit price

43,29 €

Volume discounts

Quantity Unit price
50 + 42,39 €

Stock: 0
