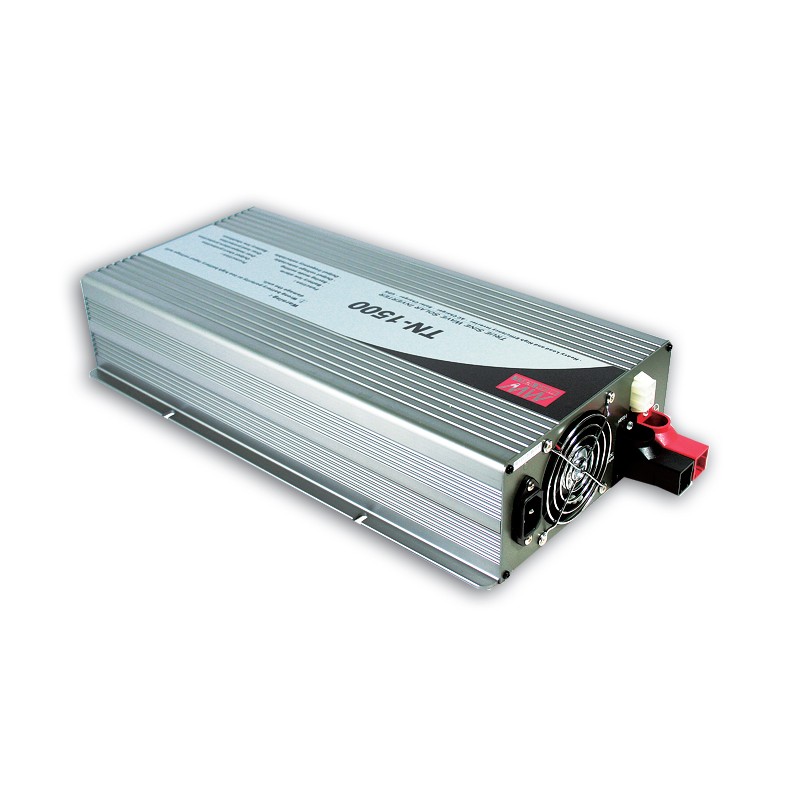

TN-1500-248B

Mean Well DC/AC converter series TN-1500

Inverters with 1500W, a status indicator, a UPS function, a power ON/OFF switch, a fan and an automatic shutdown function in case of a deeply discharged battery. These devices have a pure sine wave output (THD<3%) and are protected against overload, overvoltage, overtemperature, voltage reversal as well as short circuit. They have a built-in solar/AC charger, trigger an alarm in case of a low battery voltage and comply with EN62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: TN-1500-212B and TN-1500-224B.

  • output: 1500W (peak power 3000W)
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50Hz ±0,1%
  • curve shape: pure sine wave (THD<3%)
  • operating temperature: 0 to +40°C
  • weight: 6850g

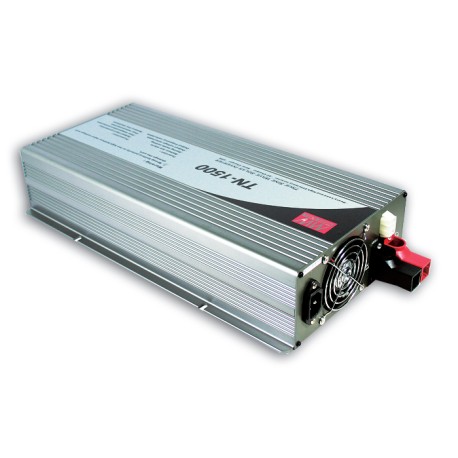

TN-1500-248B, Mean Well DC/AC converters, 1500W, pure sine wave, solar charger, TN-1500 series

TN-1500-248B

246583 TN-1500-248B TN-1500-248B 4711287467566 Mean Well DC/AC converter series TN-1500. Inverters with 1500W, a status indicator, a UPS function, a power ON/OFF switch, a fan and an automatic shutdown function in case of a deeply discharged battery. These devices have a pure sine wave output (THD&lt;3%) and are protected against overload, overvoltage, overtemperature, voltage reversal as well as short circuit. They have a built-in solar/AC charger, trigger an alarm in case of a low battery voltage and comply with EN62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: TN-1500-212B and TN-1500-224B. output: 1500W (peak power 3000W) selectable output voltage: 200/220/230/240V AC output voltage tolerance: ±3% output frequency: 50Hz ±0,1% curve shape: pure sine wave (THD&lt;3%) operating temperature: 0 to +40°C weight: 6850g

Specifications

manufacturer
Manufacturer's name TN-1500-248B
GTIN 4711287467566
Starting rated current [A] 37,5
Input [V DC] 42...60
Battery alert [V] 45 ±4%
Battery cutoff [V] 42 ±4%
Efficiency [%] 91
Data Sheet

Unit price

462,99 €

Stock: 0
Further delivery:
CW 05/2026
