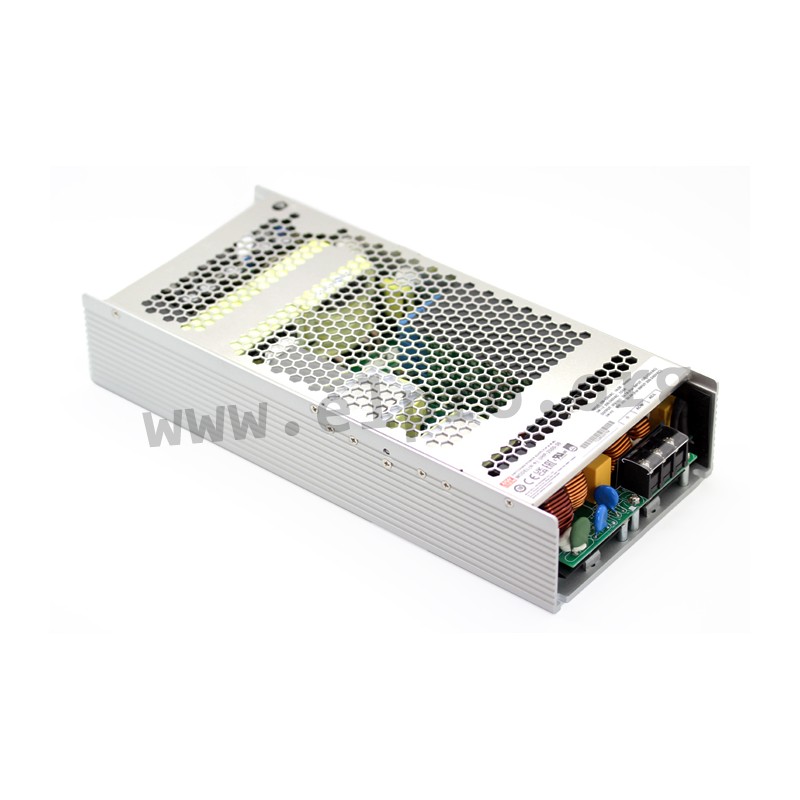

UHP-2500-24

Mean Well power supply series UHP-2500

Switching power supplies in a metal case (U-bracket) with a slim/low profile (60mm), a fanless design and a universal input. These devices have a built-in active PFC function and are protected against short circuit, overload, overvoltage as well as overtemperature. The output voltage as well as the output current are programmable. The UHP-2500 series features 2G anti-vibration capability and complies with EN62368-1, EN55032 class B as well as EN55032 class A. We offer the following types of this Mean Well series: UHP-2500-24, UHP-2500-36 and UHP-2500-48.

  • single output
  • 1U low profile (60mm)
  • output: 2498,4 to 2500,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC
  • maximal input inrush current: 60A
  • maximal leakage current: 0,75mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • dimensions: 310x140x60mm
  • weight: 3500g

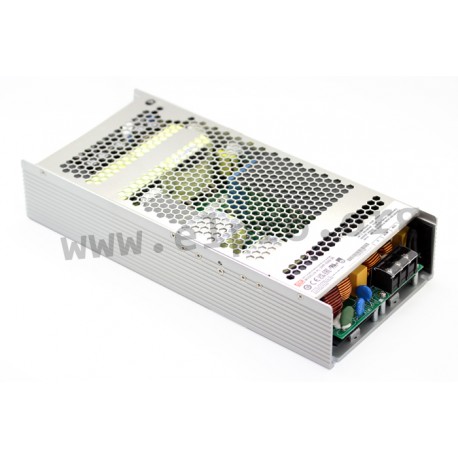

UHP-2500-24, Mean Well switching power supplies, 2500W, U-bracket, PFC, UHP-2500 series

UHP-2500-24

114308 UHP-2500-24 UHP-2500-24 4711287432977 Mean Well power supply series UHP-2500. Switching power supplies in a metal case (U-bracket) with a slim/low profile (60mm), a fanless design and a universal input. These devices have a built-in active PFC function and are protected against short circuit, overload, overvoltage as well as overtemperature. The output voltage as well as the output current are programmable. The UHP-2500 series features 2G anti-vibration capability and complies with EN62368-1, EN55032 class B as well as EN55032 class A. We offer the following types of this Mean Well series: UHP-2500-24, UHP-2500-36 and UHP-2500-48. single output 1U low profile (60mm) output: 2498,4 to 2500,8W input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC maximal input inrush current: 60A maximal leakage current: 0,75mA overload protection: 105 to 115% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C dimensions: 310x140x60mm weight: 3500g

Specifications

manufacturer
Manufacturer's name UHP-2500-24
GTIN 4711287432977
Output voltage [V] 24
Efficiency [%] 95
Output current [A] 104,2
Output voltage tolerance: [%] 1
Output power [W] 2500,8
Output voltage adjustment [V] 24...28,8
Ripple [mVp-p] 300
Data Sheet

Unit price

499,19 €

Stock: 11
Further delivery:
CW 32/2024
