VFD-350P-230

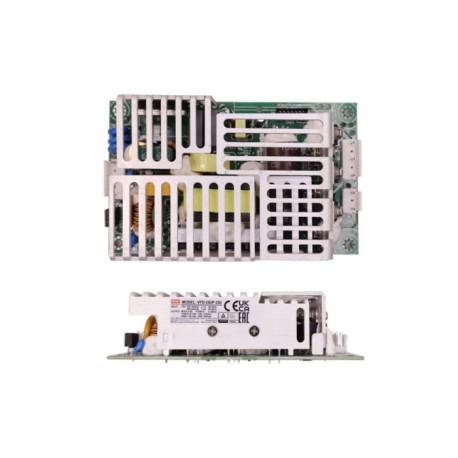

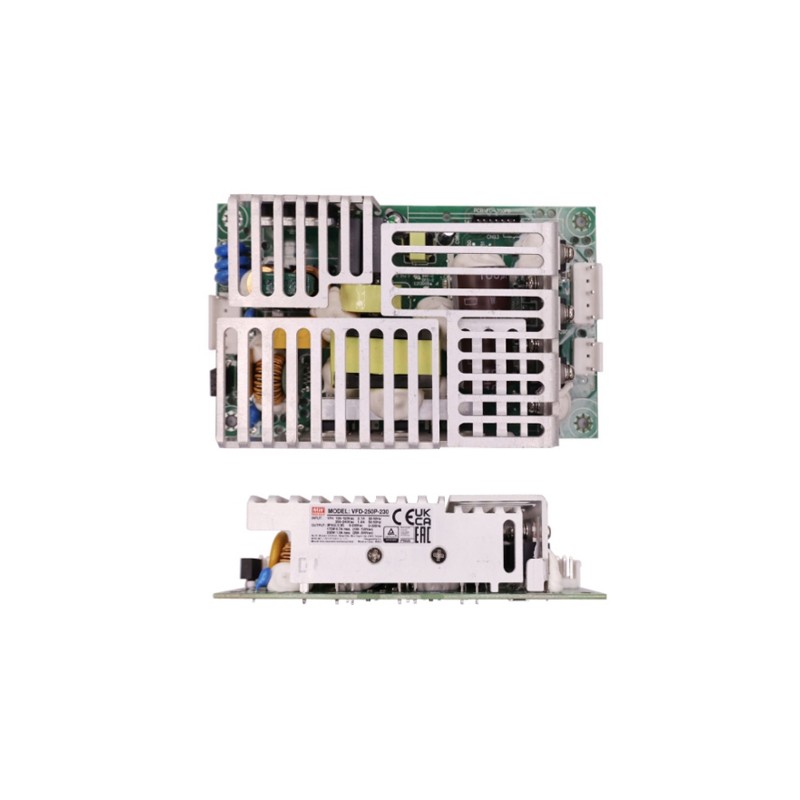

Mean Well variable frequency drive series VFD-350P-230

Variable frequency drives in an enclosed 5"x3" housing (PCB) with 350W, a current sensor, a bus voltage sensor as well as a temperature sensor and a peak load capability of up to 200%. These devices have a built-in active PFC function, are suitable for motors with a 3-phase control and are protected against short circuit. They can be controlled with an external PWM signal and comply with EN61800-5-1 as well as EN61800-3 class A. We offer the type VFD-350P-230 of this Mean Well series.

  • output: 350W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • leakage current: <2mA
  • operating temperature: -30 to +70°C
  • dimensions: 127x76,2x35mm
  • weight: 0,27kg
VFD-350P-230, Mean Well variable frequency drives, 350W, enclosed, PCB, VFD-350P-230 series

VFD-350P-230

244430 VFD-350P-230 VFD-350P-230 Mean Well variable frequency drive series VFD-350P-230. Variable frequency drives in an enclosed 5"x3" housing (PCB) with 350W, a current sensor, a bus voltage sensor as well as a temperature sensor and a peak load capability of up to 200%. These devices have a built-in active PFC function, are suitable for motors with a 3-phase control and are protected against short circuit. They can be controlled with an external PWM signal and comply with EN61800-5-1 as well as EN61800-3 class A. We offer the type VFD-350P-230 of this Mean Well series. output: 350W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 70A leakage current: &lt;2mA operating temperature: -30 to +70°C dimensions: 127x76,2x35mm weight: 0,27kg

Specifications

manufacturer
Manufacturer's name VFD-350P-230
Output voltage [V] 0...240
Efficiency [%] 93
Output current [A] 1,4
Output power [W] 350
Data Sheet

Unit price

38,59 €

Volume discounts

Quantity Unit price
50 + 37,29 €

Stock: 8
Further delivery:
CW 05/2026
