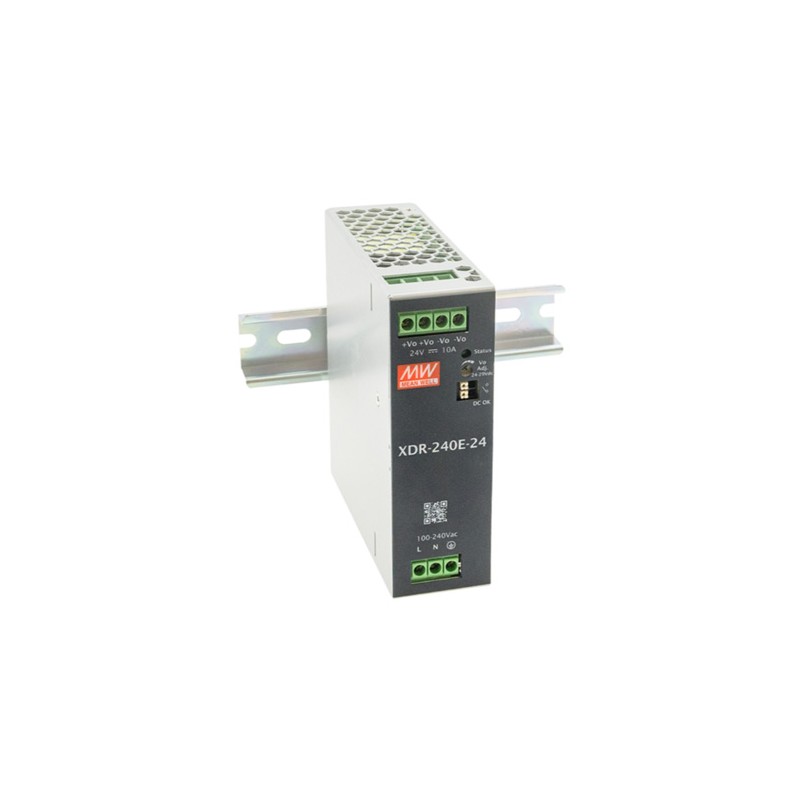

XDR-240E-12

Mean Well DIN rail power supplies series XDR-240E

Power supplies in a enclosed housing with 240W and DC-OK signal. These devices conform with EN 55032, EN 55032 Klasse B, EN 61204-3, EN 61010-1, EN 61558-1, EN 61558-2-16, and EN 62368-1. They are suitable for Din rail mounting, as well as they are potected against over voltage, over load (auto recovery), and short circuit. We offer the following types of this Mean Well seriesn: XDR-240E-12, XDR-240E-24, XDR-240E-36, and XDR-240E-48.

  • current: 240W
  • input voltage range: 85 to 264V AC (47 to 63Hz), 120 to370V DC
  • maximal inrush power: 30A
  • operating temperature: -40 to +70°C
  • dimensions: 40x125.2x116mm
  • weight: 610g

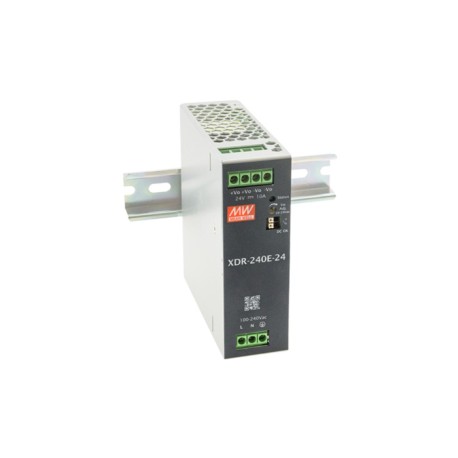

XDR-240E-12, Mean Well DIN rail power supplies, 240W, XDR-240E series

XDR-240E-12

251383 XDR-240E-12 XDR-240E-12 Mean Well DIN rail power supplies series XDR-240E. Power supplies in a enclosed housing with 240W and DC-OK signal. These devices conform with EN 55032, EN 55032 Klasse B, EN 61204-3, EN 61010-1, EN 61558-1, EN 61558-2-16, and EN 62368-1. They are suitable for Din rail mounting, as well as they are potected against over voltage, over load (auto recovery), and short circuit. We offer the following types of this Mean Well seriesn: XDR-240E-12, XDR-240E-24, XDR-240E-36, and XDR-240E-48. current: 240W input voltage range: 85 to 264V AC (47 to 63Hz), 120 to370V DC maximal inrush power: 30A operating temperature: -40 to +70°C dimensions: 40x125.2x116mm weight: 610g

Specifications

manufacturer
Manufacturer's name XDR-240E-12
Data Sheet

Unit price

39,69 €

Volume discounts

Quantity Unit price
50 + 38,39 €

Stock: 27
Next incoming goods:
CW 51/2025
101 units

Further delivery:
CW 12/2026
