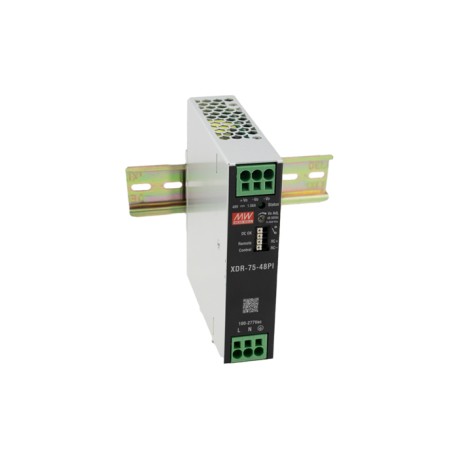

XDR-75-48PI

Mean Well DIN rail power supplies series XDR-75

Power supplies in a enclosed housing with 75W and DC-OK signal. These devices are suitable for Din rail mounting, as well as they are potected against over voltage, over load (auto recovery), over temperature, and short circuit. We offer various types of this Mean Well series.

  • current: 75W
  • input voltage range: 85 to 305V AC (47 to 63Hz), 80 to 431V DC
  • maximal inrush power: 10A
  • operating temperature: -40 to +85°C
  • dimensions: 30x125.2x116mm
  • weight: 496g
XDR-75-48PI, Mean Well DIN rail power supplies, 75W, XDR-75 series

XDR-75-48PI

256616 XDR-75-48PI XDR-75-48PI Mean Well DIN rail power supplies series XDR-75. Power supplies in a enclosed housing with 75W and DC-OK signal. These devices are suitable for Din rail mounting, as well as they are potected against over voltage, over load (auto recovery), over temperature, and short circuit. We offer various types of this Mean Well series. current: 75W input voltage range: 85 to 305V AC (47 to 63Hz), 80 to 431V DC maximal inrush power: 10A operating temperature: -40 to +85°C dimensions: 30x125.2x116mm weight: 496g

Specifications

manufacturer
Manufacturer's name XDR-75-48PI
Output voltage [V] 48
Efficiency [%] 91
Output current [A] 0...1,56
Output power [W] 74,88
Data Sheet

Unit price

28,19 €

Volume discounts

Quantity Unit price
50 + 26,59 €

Stock: 0
Further delivery:
CW 44/2026
