XDR-960-48PI

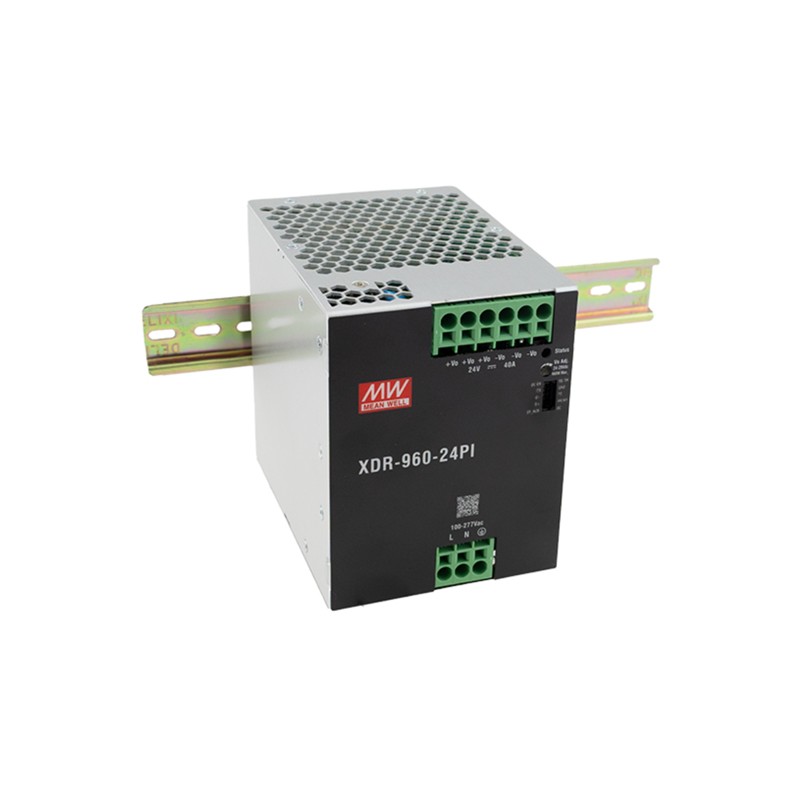

Mean Well DIN rail power supplies series XDR-960

Power supplies in a enclosed housing with 960W and DC-OK signal. These devices are suitable for Din rail mounting, as well as they are potected against over voltage, over load (auto recovery), over temperature, and short circuit. We offer various types of this Mean Well series.

  • current: 960W
  • input voltage range: 85 to 305V AC (47 to 63Hz), 80 to 431V DC
  • maximal inrush power: 10A
  • operating temperature: -40 to +85°C
  • dimensions: 96x125.2x132mm
  • weight: 2060g

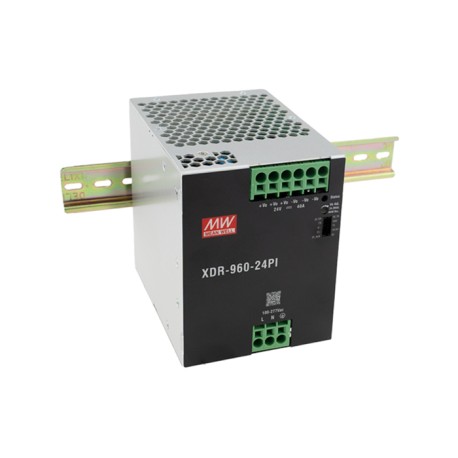

XDR-960-48PI, Mean Well DIN rail power supplies, 960W, XDR-960 series

XDR-960-48PI

256661 XDR-960-48PI XDR-960-48PI Mean Well DIN rail power supplies series XDR-960. Power supplies in a enclosed housing with 960W and DC-OK signal. These devices are suitable for Din rail mounting, as well as they are potected against over voltage, over load (auto recovery), over temperature, and short circuit. We offer various types of this Mean Well series. current: 960W input voltage range: 85 to 305V AC (47 to 63Hz), 80 to 431V DC maximal inrush power: 10A operating temperature: -40 to +85°C dimensions: 96x125.2x132mm weight: 2060g

Specifications

manufacturer
Manufacturer's name XDR-960-48PI
Output voltage [V] 48
Efficiency [%] 96
Output current [A] 0...20
Output power [W] 960
Data Sheet

Unit price

208,79 €

Volume discounts

Quantity Unit price
50 + 204,39 €

Stock: 0
Further delivery:
CW 44/2026
