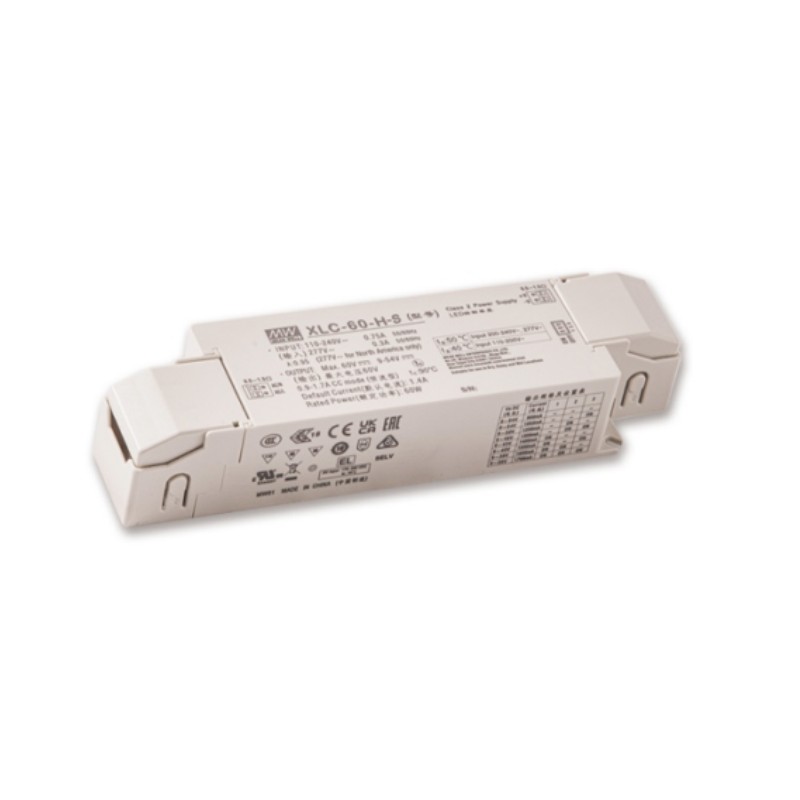

XLC-60-48-BS

Mean Well LED driver series XLC-60

LED drivers in a plastic housing with 60W, a constant voltage, a 3 in 1 dimming function a low no-load power (<0,5W) and a strain relief (XLC-60_-BS). These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLC-60-12-B, XLC-60-12-BS, XLC-60-24-B, XLC-60-24-BS, XLC-60-48-B and XLC-60-48-BS.

  • single output
  • output: 60W
  • input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC
  • maximal input inrush current: 15A
  • leakage current: <0,75mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C

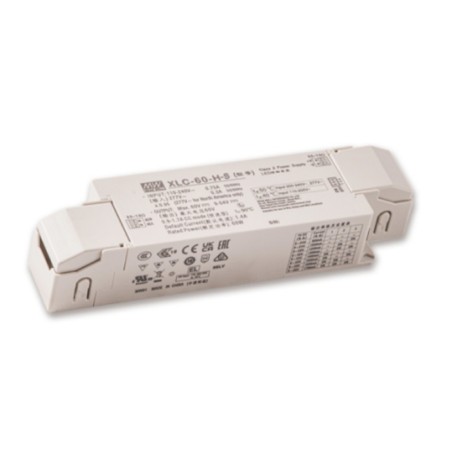

XLC-60-48-BS, Mean Well LED drivers, 60W, constant voltage, dimmable, XLC-60 series

XLC-60-48-BS

245585 XLC-60-48-BS XLC-60-48-BS Mean Well LED driver series XLC-60. LED drivers in a plastic housing with 60W, a constant voltage, a 3 in 1 dimming function a low no-load power (&lt;0,5W) and a strain relief (XLC-60_-BS). These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLC-60-12-B, XLC-60-12-BS, XLC-60-24-B, XLC-60-24-BS, XLC-60-48-B and XLC-60-48-BS. single output output: 60W input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC maximal input inrush current: 15A leakage current: &lt;0,75mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +90°C

Specifications

manufacturer
Manufacturer's name XLC-60-48-BS
Output voltage [V] 48
Efficiency [%] 88
Output current [A] 1,25
Output power [W] 60
Data Sheet

Unit price

24,29 €

Volume discounts

Quantity Unit price
50 + 22,59 €

Stock: 0
Next incoming goods:
CW 26/2024
20 units

Further delivery:
CW 36/2024
