XLG-200-H-DA2

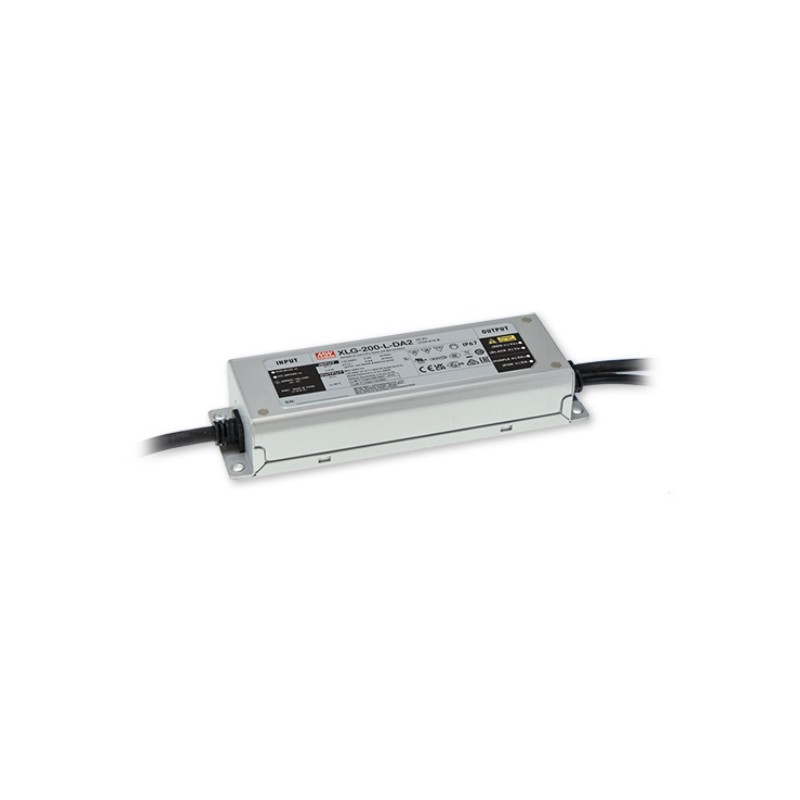

Mean Well LED driver series XLG-200-DA2

LED drivers in a metal housing (IP67) with 200W, a constant power, a Dali-2 interface and a low no-load power. These devices have a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications, are dimmable and are protected against short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: XLG-200-L-DA2 and XLG-200-H-DA2.

  • single output
  • output: 200W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1800V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g

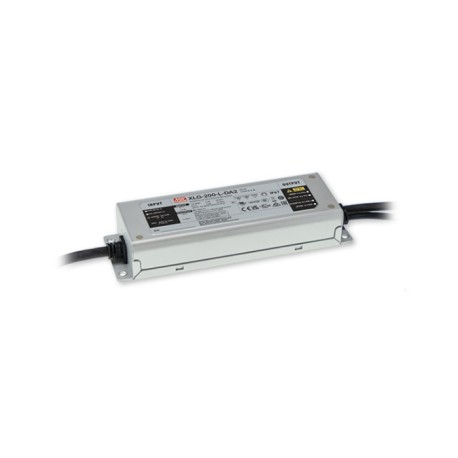

XLG-200-H-DA2, Mean Well LED drivers, 200W, IP67, constant power, dimmable, DALI 2.0 interface, XLG-200-DA2 series

XLG-200-H-DA2

242896 XLG-200-H-DA2 XLG-200-H-DA2 Mean Well LED driver series XLG-200-DA2. LED drivers in a metal housing (IP67) with 200W, a constant power, a Dali-2 interface and a low no-load power. These devices have a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications, are dimmable and are protected against short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: XLG-200-L-DA2 and XLG-200-H-DA2. single output output: 200W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 75A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1800V AC operating temperature: -40 to +90°C dimensions: 199x63x35,5mm weight: 850g

Specifications

manufacturer
Manufacturer's name XLG-200-H-DA2
Output voltage [V] 27...56
Efficiency [%] 93
Output current [A] 3,5
Output power [W] 200
Data Sheet

Unit price

40,49 €

Volume discounts

Quantity Unit price
50 + 39,19 €

Stock: 31
Further delivery:
CW 42/2024
