XLG-240-L-DA2

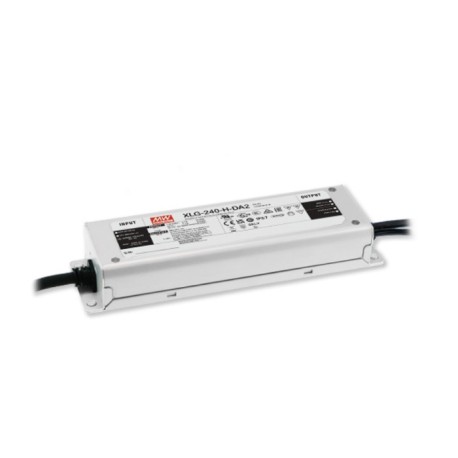

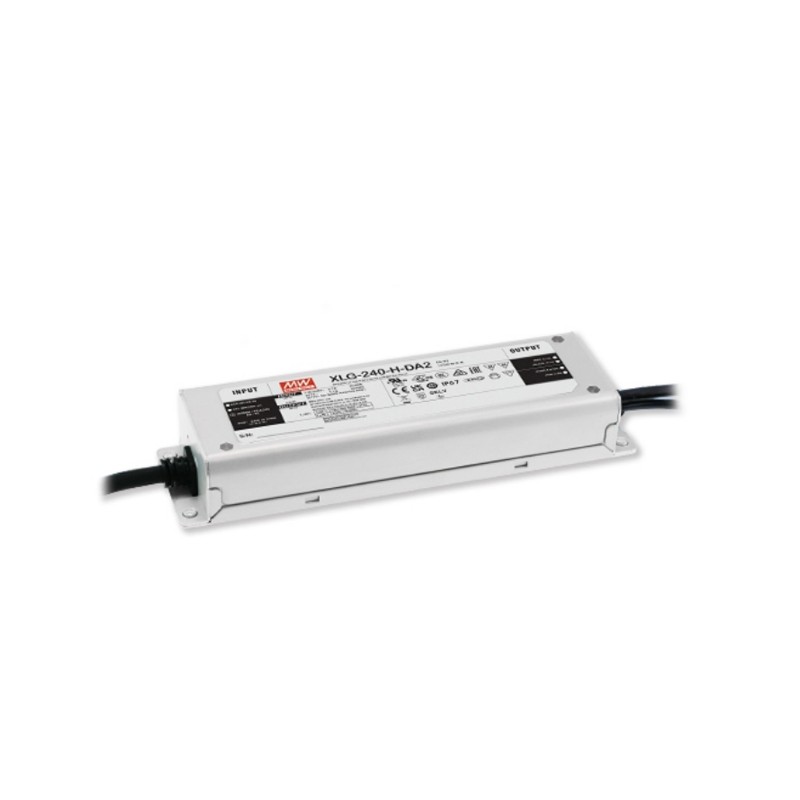

Mean Well LED driver series XLG-240-DA2

LED drivers in a metal housing (IP67) with 240W, a constant power output, a Dali-2 interface and a low no-load power consumption. These devices are suitable for LED lighting applications and are protected against overtemperature, short circuit as well as overvoltage. They are dimmable, have a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-240-L-DA2, XLG-240-M-DA2 and XLG-240-H-DA2.

  • single output
  • output: 239,4 to 239,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 85A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1800V AC
  • operating temperature: -40 to +90°C
  • weight: 1000g
XLG-240-L-DA2, Mean Well LED drivers, 240W, IP67, constant power, dimmable, DALI 2.0 interface, XLG-240-DA2 series

XLG-240-L-DA2

242899 XLG-240-L-DA2 XLG-240-L-DA2 Mean Well LED driver series XLG-240-DA2. LED drivers in a metal housing (IP67) with 240W, a constant power output, a Dali-2 interface and a low no-load power consumption. These devices are suitable for LED lighting applications and are protected against overtemperature, short circuit as well as overvoltage. They are dimmable, have a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-240-L-DA2, XLG-240-M-DA2 and XLG-240-H-DA2. single output output: 239,4 to 239,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 85A leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1800V AC operating temperature: -40 to +90°C weight: 1000g

Specifications

manufacturer
Manufacturer's name XLG-240-L-DA2
Output voltage [V] 178...342
Efficiency [%] 94
Output current [A] 0,7
Output power [W] 239,4
Data Sheet

Unit price

42,39 €

Volume discounts

Quantity Unit price
50 + 40,99 €

Stock: 32
Further delivery:
CW 42/2024
