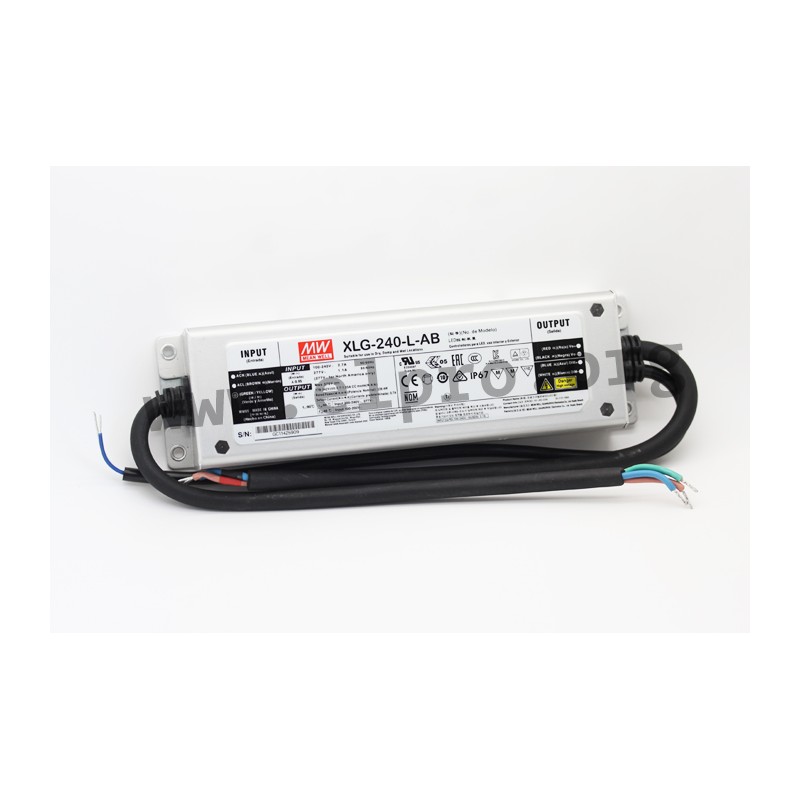

XLG-240-H

Mean Well LED driver series XLG-240

LED drivers in a metal housing (IP67) with 240W, a constant power, a universal input and a low no-load power. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit, overcurrent as well as overvoltage. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN62384, EN55015 as well as EN61547. We offer the following types of this Mean Well series: XLG-240-L, XLG-240-M and XLG-240-H.

  • single output
  • output: 239,4 to 239,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 1000g

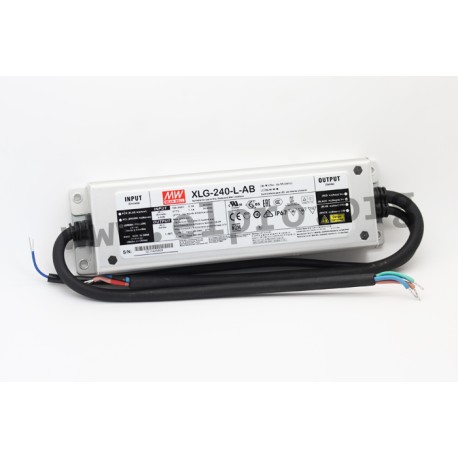

XLG-240-H, Mean Well LED drivers, 240W, IP67, constant power, XLG-240 series

XLG-240-H

244643 XLG-240-H XLG-240-H Mean Well LED driver series XLG-240. LED drivers in a metal housing (IP67) with 240W, a constant power, a universal input and a low no-load power. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit, overcurrent as well as overvoltage. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN62384, EN55015 as well as EN61547. We offer the following types of this Mean Well series: XLG-240-L, XLG-240-M and XLG-240-H. single output output: 239,4 to 239,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 75A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 219x63x35,5mm weight: 1000g

Specifications

manufacturer
Manufacturer's name XLG-240-H
Output voltage [V] 27...56
Efficiency [%] 91
Output power [W] 239,6
Output current [mA] 4280
Data Sheet

Unit price

30,19 €

Stock: 0
Further delivery:
CW 36/2024

Minimum order quantity 200 units or
multiples of 200.
