XLN-25-H

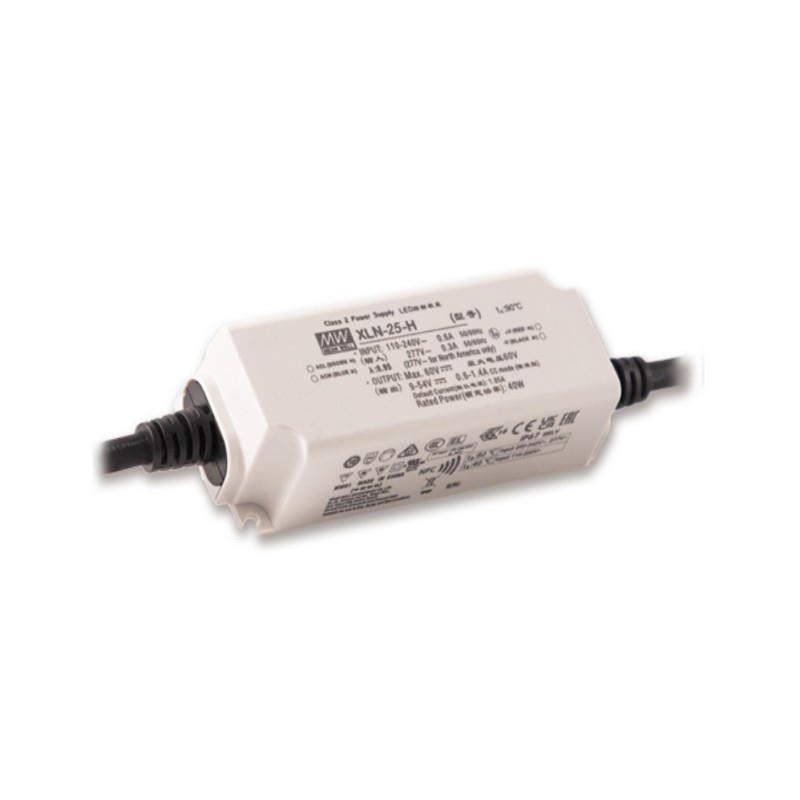

Mean Well LED driver series XLN-25

LED drivers in a plastic housing (IP67) with 25W, a constant voltage and a low no-load power (<0,5W). These devices have a built-in active PFC function and are protected against overload, short circuit, overvoltage as well as overtemperature. They are adjustable through an NFC signal, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61547. We offer the type XLN-25-H of this Mean Well series.

  • single output
  • output: 25W
  • input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC
  • maximal input inrush current: 10A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
  • dimensions: 114x44x32mm

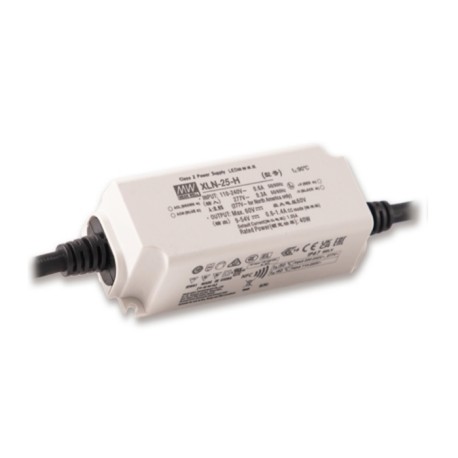

XLN-25-H, Mean Well LED drivers, 25W, IP67, constant power/voltage, adjustable, NFC, XLN-25 series

XLN-25-H

245519 XLN-25-H XLN-25-H Mean Well LED driver series XLN-25. LED drivers in a plastic housing (IP67) with 25W, a constant voltage and a low no-load power (&lt;0,5W). These devices have a built-in active PFC function and are protected against overload, short circuit, overvoltage as well as overtemperature. They are&nbsp;adjustable through an NFC signal, are suitable for LED lighting applications and comply with&nbsp;EN61347-1, EN61347-2-13, EN55015 as well as EN61547. We offer the type XLN-25-H of this Mean Well series. single output output: 25W input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC maximal input inrush current: 10A withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +90&deg;C dimensions: 114x44x32mm

Specifications

manufacturer
Manufacturer's name XLN-25-H
Output voltage [V] 9...54
Efficiency [%] 88
Output current [A] 0,3...1,05
Output power [W] 25
Data Sheet

Unit price

16,19 €

Volume discounts

Quantity Unit price
50 + 15,09 €

Stock: 0
Further delivery:
CW 36/2024
