XLN-40-24

Mean Well LED driver series XLN-40

LED drivers in a plastic housing (IP67) with 40W, a constant voltage and a low no-load power (<0,5W). These devices have a built-in active PFC function and are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLN-40-12 and XLN-40-24.

  • single output
  • output: 40,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC
  • maximal input inrush current: 10A
  • leakage current: <0,75mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
  • dimensions: 114x44x32mm

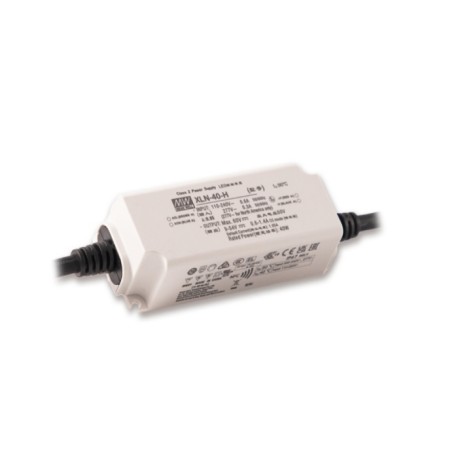

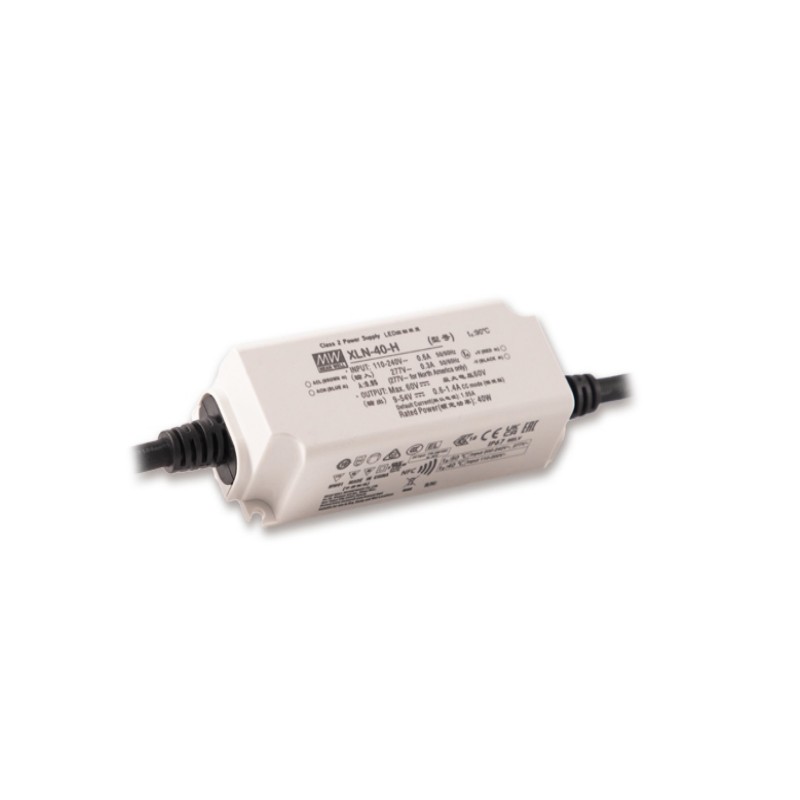

XLN-40-24, Mean Well LED drivers, 40W, IP67, constant power/voltage, XLN-40 series

XLN-40-24

245539 XLN-40-24 XLN-40-24 Mean Well LED driver series XLN-40. LED drivers in a plastic housing (IP67) with 40W, a constant voltage and a low no-load power (&lt;0,5W). These devices have a built-in active PFC function and are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for LED lighting applications and comply with&nbsp;EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;XLN-40-12 and XLN-40-24. single output output:&nbsp;40,8W input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC maximal input inrush current: 10A leakage current: &lt;0,75mA overload protection: 105 to 150% withstand voltage&nbsp;I/P-O/P: 3750V AC operating temperature: -25 to +90&deg;C dimensions: 114x44x32mm

Specifications

manufacturer
Manufacturer's name XLN-40-24
Output voltage [V] 24
Efficiency [%] 88
Output current [A] 1,7
Output voltage tolerance: [%] ±4
Output power [W] 40,8
Ripple [mVp-p] 60
Data Sheet

Unit price

17,79 €

Volume discounts

Quantity Unit price
50 + 16,59 €

Stock: 0
Next incoming goods:
CW 32/2024
397 units

Further delivery:
CW 36/2024
